The LED Hologram Screen offers high transparency with up to 90%, a slim 3 mm profile, and pixel pitch options of 3.91, 6.25, and 10.4 mm. This custom led screen provides dynamic visuals for precision display applications and seamless glass integrations, designed by expert led screen manufacturers.
Performance parameter:| Pixel Pitch | 3.91/6.25/10.4mm |
| Brightness | 1000-4500 nit |
| Weight per Cabinet | 5kg/Cabinet |
| Product number | P3.91 | P6.25 | P10.4 |
| Pixel pitch | 3.91mm | 6.25mm | 10.4mm |
| Pixel density | 65536 points/㎡ | 25600 points/㎡ | 9216Points/㎡ |
| Module size | Length 1500*Width 125mm | Length1500mm*Width200mm | Length1500mm*Width250mm |
| Power consumption | Average: 300W/㎡, maximum: 800W/㎡ | Average: 180W/㎡, maximum: 600W/㎡ | Average: 180W/㎡, maximum: 600W/㎡ |
| screen brightness | 1000-2500cd/m² | 1000-2000cd/m² | 1600cd/m² |
| Visible distance | 4m～100m | 6m～100m | 10m～100m |
| Pixel composition | One pure red tube, one pure green tube, one pure blue tube | ||
| Display thickness | 3mm | ||
| LED light tube | SMD1717 gold wire | ||
| Driver IC | Light driver in one (customized) | ||
| Screen weight | Less than 5kg/㎡ | ||
| power supply | Yuanchi 400W (with PFC) | ||
| Connector | Copper material | ||
| Wire and Cable | National standard multi-core wire, certified | ||
| PCB board | International A material | ||
| Screen transparency | 90% | ||
| Protection level | IP30 | ||
| Flatness | Seam between modules <0.1mm | ||
| average life span | More than 100,000 usage hours | ||
| out of control point | Less than one ten thousandth (when used continuously) | ||
| Power supply requirements | 220V±10%; AC50HZ, three-phase five-wire | ||
| continuous working time | greater than 72 hours | ||
| Warranty | 1 year | ||
| Light emitting components | Dehe | ||
| Dimming | Automatic adjustment and manual adjustment according to ambient brightness, greater than or equal to 256 levels | ||
| perspective | 140 horizontally, 140 vertically | ||
| Grayscale | 65536 levels of grayscale | ||
| White point color temperature | 5500K-9300K | ||
| Image adjustment | White balance, contrast, vision, tone adjustment | ||
| Image Processing | Images are processed with noise reduction, enhancement, motion compensation, and color coordinate transformation | ||
| Drive mode | Constant current drive | ||
| scanning method | static | ||
| Leakage current to earth | Less than 2mA | ||
| Signal processing capabilities | ＞10bit | ||
| Brightness uniformity | When the entire screen is the brightest monochrome, the minimum pixel brightness/maximum pixel brightness is greater than 0.95 | ||
| decay rate | Less than 0.05% for 2 years | ||
| Contrast | 5000：1 | ||
| Refresh frequency | 3840HZ | ||
| frame change frequency | ＞60HZ | ||
| video input | Compatible with PAL\NTSC TV signals, compatible with HDTV | ||
| Software interface | WINDOWS7、NT、XP、2000 | ||
| display mode | 32-bit true color 1024X768 | ||
| mean time between failures | ＞10000h | ||
| Lamp bead defective pixel rate | ＜ 1/1000, and distributed discretely | ||
| Control System | Colorite, Mosier, Nova synchronous/asynchronous | ||
| Use a ring mirror | "◆Working environment: -10～+65 ℃/ 10～90 %RH ◆Storage environment: -40～+85 ℃/ 10～90 %RH" |
||
| Installation method | Paste installation | ||
Functional Positioning for Transparent Display Applications

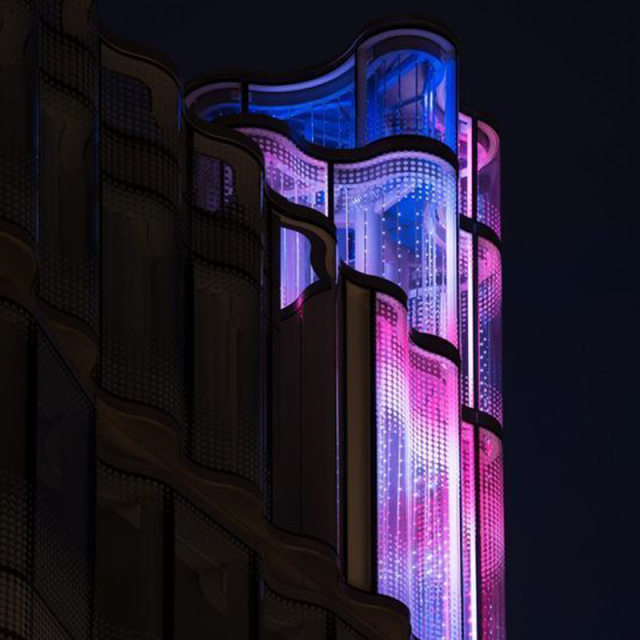

The LED Hologram Screen serves as an advanced display solution tailored for industries requiring holographic effect integration on transparent surfaces such as glass storefronts, museum exhibits, and stage backdrops. Designed by leading led screen manufacturers, it meets demands for visual clarity while maintaining near invisibility to the naked eye. Its lightweight structure, under 5 kg/m², and ultra-thin 3 mm thickness facilitate installation directly onto glass or acrylic via pre-applied adhesives. This enables both temporary and permanent deployments suitable for trade shows, retail environments, and corporate displays where unobtrusive, high-impact visuals are critical. Buyers seeking a precision-engineered custom led screen find this solution optimal for integration with diverse display systems and modern architectural designs.
Technical Features Delivering Precision and Durability
This custom led screen by experienced led light manufacturers incorporates pixel pitches of 3.91, 6.25, and 10.4 mm, enabling selection based on viewing distance and resolution requirements. Highlighted by a brightness range of 1000-2500 cd/m² and wide 140° viewing angles, the screen ensures visibility under varied lighting conditions. It features a high transparency rate of up to 90% achieved through a unique film-panel design and single RGB LED tube modules sized proportionally for each pitch. Power management utilizes a Yuanchi 400W unit with PFC, supporting 220V AC, 50 Hz, and 256-level brightness dimming for fine image adjustment. Additional specifications such as a 3840 Hz refresh rate, contrast ratio of 5000:1, and IP30 protection conform with rigorous operational standards demanded by led screen manufacturers focused on performance and system reliability.
Industry Applications and Integration in Advanced Visual Environments

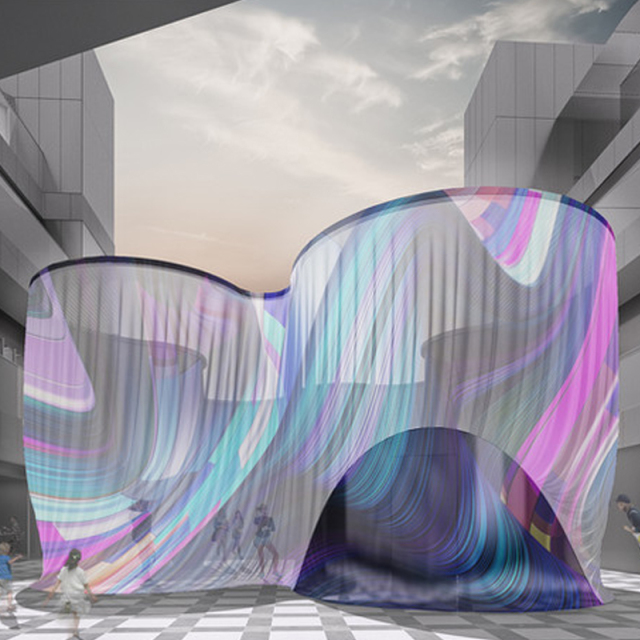

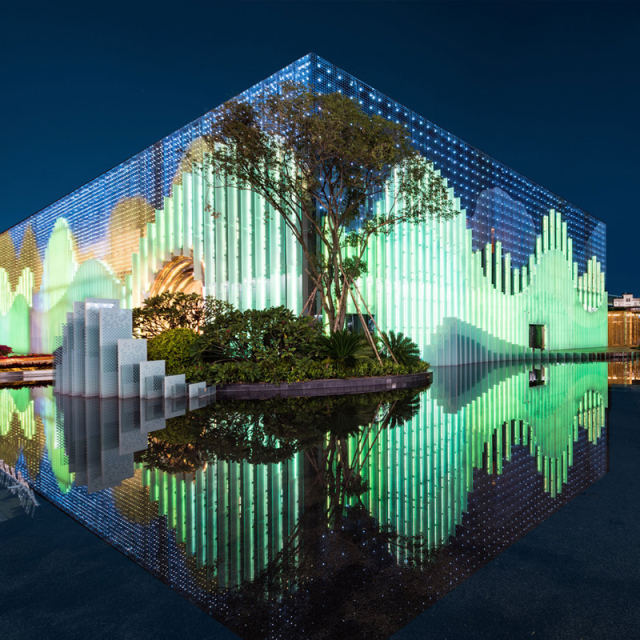

The LED Hologram Screen finds application across retail, entertainment, and architectural sectors requiring visually compelling displays with minimal visual obstruction. As an effective led light solution, it enhances product launches in glass storefronts, creates immersive trade show experiences, and supports dynamic stage productions with realistic 3D holographic imagery. Museums and galleries utilize this technology to present transparent exhibits while maintaining visitor sightlines. Furthermore, its compatibility with HDTV inputs and control software enables seamless integration into existing AV and digital signage ecosystems. Outdoor led screen manufacturers recognize its role in high-visibility signage for malls, airports, and large venues, where the product’s transparency and flexible installation maximize ROI through multipurpose use and energy-efficient operation.
Innovative Structural Design and Modular Construction

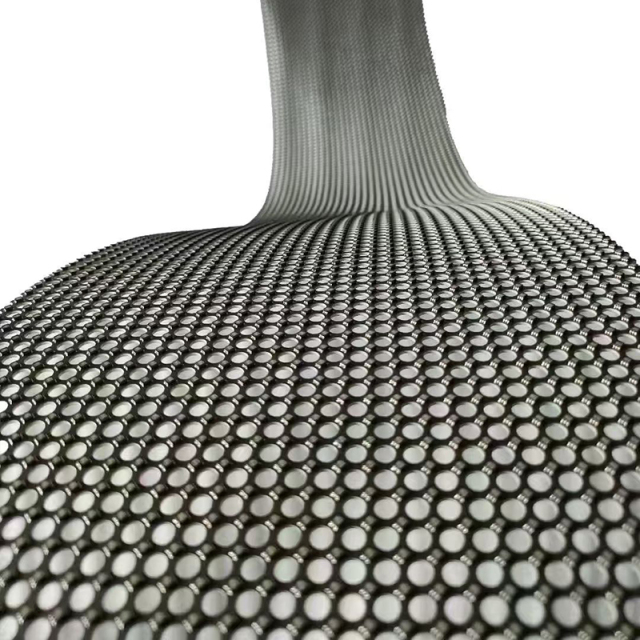

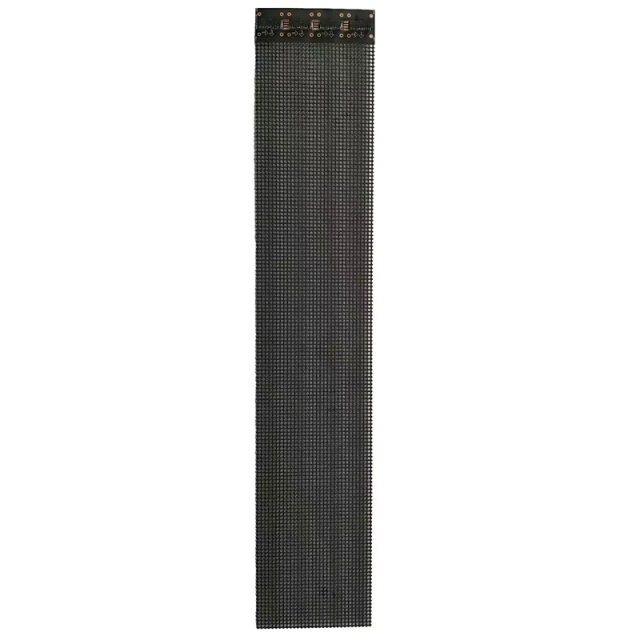

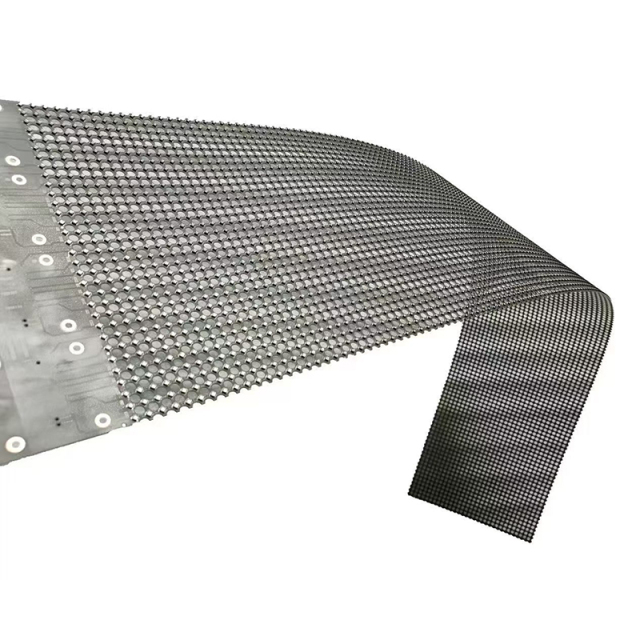

This led light solution features a film-panel design that combines ultra-high transparency with durability in a sleek 3 mm format, engineered for direct adhesion on transparent substrates. The modular approach enables straightforward on-site customization and resizing without compromising uniformity, with module seams less than 0.1 mm ensuring continuous image flow. As a product of experienced led light manufacturers, it supports cutting, bending, and flexible installation methods to align with architectural constraints, eliminating the need for bulky framing or support structures. This level of customization enables architects and display integrators to incorporate advanced visual elements without altering structural aesthetics, marking it as a leading product from a responsive led light factory that prioritizes design adaptability.
Superior Visual Performance and Operational Efficiency
Performance attributes of this led light manufacturer’s product include a high refresh frequency of 3840 Hz and smooth grayscale gradations through 65536 levels, optimizing image fidelity and motion clarity. Its energy efficiency is underscored by automatic/manual brightness dimming and low power consumption rates, contributing to reduced operational costs for large installations. User-friendly maintenance is facilitated by the accessible modular system and stable electrical characteristics, including low leakage current and consistent brightness uniformity above 0.95. The screen also supports multi-standard video inputs and advanced image processing to maintain display quality under various environmental conditions. Such features position this led screen solution as a long-term value investment that aligns with demanding technical specifications and professional visual standards.
Transparent Retail Displays for Enhanced Product Visibility
In retail environments, the LED Hologram Screen is mounted directly on glass storefronts or display cases to deliver holographic advertising and product demonstrations without obstructing natural sightlines. This scenario demands a high-transparency, energy-efficient display capable of operating continuously with minimal heat output. The product’s slim, lightweight design and pre-applied adhesive mounting system reduce installation complexity and downtime during seasonal or promotional rotations. As a specialized offering from led screen manufacturers, its pixel pitch and brightness levels are selected to optimize visibility at typical retail viewing distances. Integration with point-of-sale and content management systems ensures synchronized messaging, enhancing customer engagement while maintaining compliance with safety and aesthetic standards.
Dynamic Stage and Event Visuals with High Impact
For live events and stage productions, the LED Hologram Screen functions as an advanced backdrop or immersive visual element that delivers depth and realism without occupying physical space. This environment requires a lightweight, fast-refresh display capable of rendering smooth video at 32-bit true color to maintain audience immersion. As a product by qualified led light manufacturers, it supports standard PAL/NTSC HDTV inputs and integrates with professional media servers and lighting control systems. The screen’s wide viewing angles and high contrast ratio ensure visibility under complex stage lighting, while its robust build withstands repeated setup and breakdown. This led screen solution enhances creative possibilities while meeting technical reliability and operational ease demanded by event producers and venue operators.
What pixel pitch options do you offer for the LED Hologram Screen?
We provide the LED Hologram Screen in three pixel pitches: 3.91 mm, 6.25 mm, and 10.4 mm. This range allows you to select the appropriate resolution and viewing distance for your project, ensuring optimal display quality whether for storefronts, trade shows, or architectural installations.
Can your LED Hologram Screen be customized to fit specific glass surfaces or shapes?

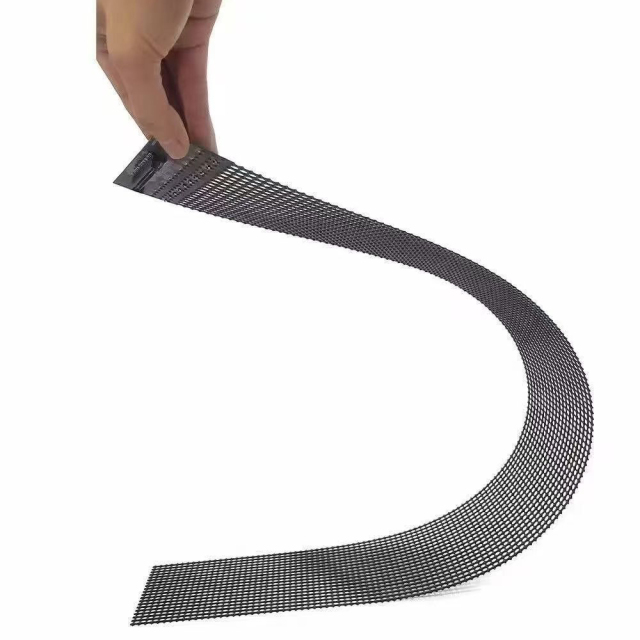

Yes, our LED Hologram Screen is highly flexible. It can be bent and cut to fit custom glass shapes or architectural designs. This adaptability combined with our experience as an LED screen manufacturer allows us to offer tailored solutions for various applications, enhancing integration with your existing structures.
What installation methods do you support for transparent glass setups?
We supply the LED Hologram Screen with pre-applied adhesive, enabling direct attachment to glass or other transparent surfaces. Its lightweight design (under 5 kg/㎡) supports both permanent and temporary installations, providing ease of setup and removal as needed. Our LED screen solutions team can assist with technical guidance for your installation.
How energy-efficient and maintainable is the LED Hologram Screen?
Our screen features automatic and manual brightness dimming across 256 levels, optimizing power consumption (average 180-300W/㎡ depending on model). It uses robust drivers and premium LED tubes ensuring over 100,000 usage hours with minimal maintenance. As a reliable led light supplier, we back the product with a one-year warranty and dedicated support.
