wholesale led mesh screen and LED mesh screen manufacturer. From façade upgrades to large outdoor events, choosing the right display starts with data rather than guesswork. Whether you are sourcing a for a large installation or selecting an with proven outdoor engineering, this guide connects the P50 LED mesh screen specifications to the decisions that matter: pixel pitch, transparency, weather resistance, and installation flexibility.
Pin down these four project conditions before comparing products. The right LED mesh screen is the one that matches your viewing distance, environment, structure, and content type.
The farther the audience, the larger the pixel pitch can be. P50 is designed for long-distance viewing, which also keeps the mesh transparent and the system efficient.
Use the pitch decision toolDirect sun and bright city environments demand high-brightness LEDs plus durable enclosure protection. The P50 combines SMD2727 LEDs with an IP66-rated design for outdoor exposure.
Check technical specsMesh construction reduces both weight and wind load compared with solid panels. P50’s lattice structure provides high airflow efficiency and low wind resistance for façade applications.
See P50 at a glanceLarge text and simple video work well on transparent mesh. For detailed close-up content, a smaller pitch may be needed; for landmarks viewed from distance, the P50’s high transmittance is a clear advantage.
Match venue to specificationUse this guide to translate viewing distance into a pixel-pitch direction. For close viewing, the manufacturer can advise a tighter pitch; for long-range visuals, the P50 mesh screen is engineered to perform.
| Viewing distance | Recommended pitch | What to expect |
|---|---|---|
| 10–20 m | Smaller-pitch model (confirm with manufacturer) | Sharper detail for close viewing; lower transparency |
| 20–40 m | Medium-pitch model (confirm with manufacturer) | Balanced clarity and see-through effect |
| 40 m and above | P50 LED mesh screen | Strong presence at distance with transparency up to 80% or higher |
The P50’s lattice mesh structure supports high airflow, low wind resistance, and transmittance up to 80% or higher, making it a strong candidate for large-scale outdoor media applications.
The P50 is a transparent LED mesh screen built for architectural and large-format outdoor displays. Its modular grid system keeps assembly straightforward, while the open lattice reduces wind load and preserves natural light.
Use these parameters to validate the P50 against your project’s engineering, electrical, and environmental requirements.
| Parameter | P50 value |
|---|---|
| Pixel pitch | P50 |
| Color | RGB |
| LED type | SMD2727 (Ruisheng LEDs) |
| LED count per pixel | 4 pcs 2727 |
| Input voltage | DC15V |
| Power consumption | 0.5W ± 10% (per pixel) |
| Down-lead specification | 2 × 0.5mm² + 2 × 0.3mm² |
| Outgoing lines | One in / one out; male and female head |
| Max pcs per meter | 20 pcs |
| Maximum serial connection | Power end: 64 pcs; signal end: 256 pcs |
| Control mode | Breakpoint resume |
| Segment / channel | 1/3 channel |
| Control chips | GS8316, SM18703APB |
| Addressing method | GS8316 / 3 channel; SM18703APB / 3 channel |
| Electronic scheme | Linear constant current |
| RGB wavelengths | R: 625nm; G: 530nm; B: 470nm (±5nm) |
| Beam angle | 120° (±10%) |
| Typical lumen | 10 lm |
| SDCM | <7 |
| CRI | >80 |
| Shell / cover material | PC / transparent PC |
| Product color | Transparent |
| Operating temperature | -25°C ~ +50°C |
| Storage temperature | -40°C ~ +70°C |
| IP rating | IP66 |
| Transmittance | Up to 80% or higher |
| Certifications | CE, ROHS, FCC |
Need a configuration that fits your structure or budget? Request a solution with your project parameters.
Every application changes the weight you place on a specification. Here is how P50’s facts map to common project decisions.
The lightweight mesh and lattice structure reduce wind load and structural strain, while IP66 protection supports outdoor exposure.
High airflow efficiency and low wind resistance make P50 practical for temporary stages, while breakpoint resume helps keep content running.
With a P50 pixel pitch and 120° beam angle, large graphics stay legible from a distance while the transparent PC shell keeps the structure unobtrusive.
Get a bulk project quote, request a custom P50 configuration, or discuss mounting and power layout with the manufacturer’s team.
Keep adjacent product options together for a faster catalog comparison.

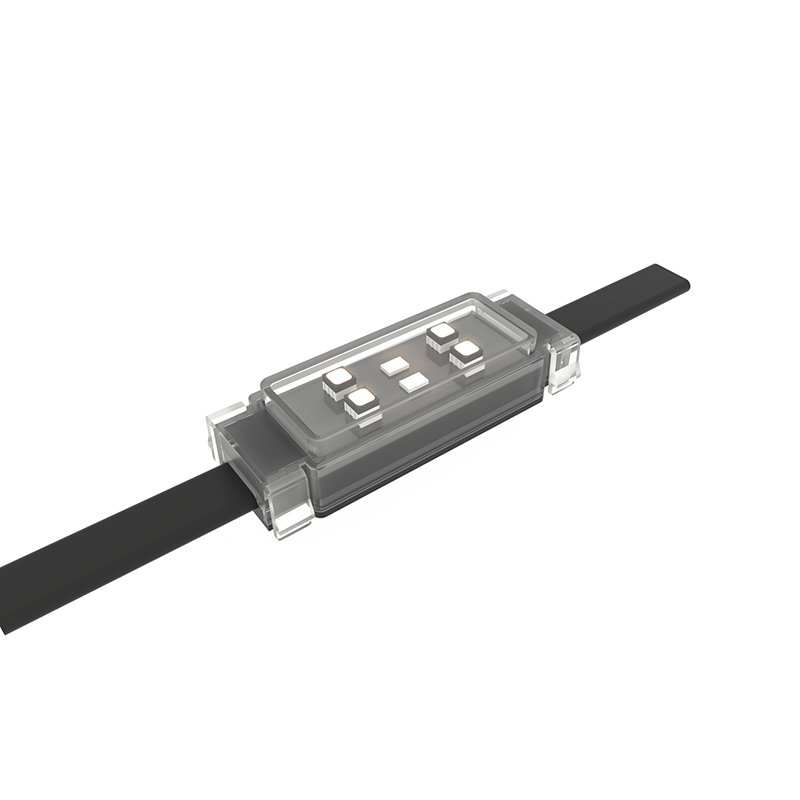

The F2059 LED Point Light delivers precise, DMX512-controllable RGBW illumination with a durable PC body and IP67 rating, making it a reliable choice for architectural lighting fro
View product

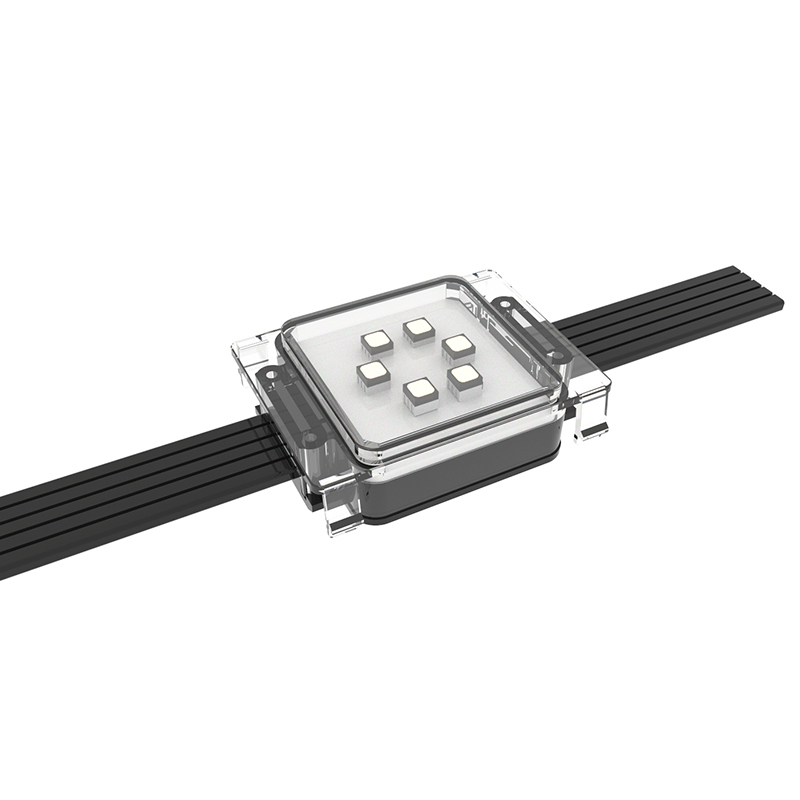

The YH LED Point Light delivers precise, DMX512-controllable RGBW illumination with a durable PC body and IP67 rating, making it a reliable choice for architectural lighting from a
View product
The YG LED Point Light delivers precise, DMX512-controllable RGBW illumination with a durable PC body and IP67 rating, making it a reliable choice for architectural lighting from a
View productthe p50 adopts a lattice mesh structure that supports transmittance of up to 80% or higher, so it can cover a building surface or window area without fully blocking light or views.
yes. it is rated ip66 for dust and water resistance, built with outdoor lightning protection and a dedicated protection design, and operates from -25°c to +50°c.
the open lattice provides high airflow efficiency and low wind resistance, while the lightweight modular grid system reduces structural load. that combination is important for building façades and large outdoor displays.
the p50 supports synchronized control, offline control, and remote control adjustment. its daisy-chain one-in/one-out signal wiring and power continuity simplify connections, and breakpoint resume helps reduce downtime risks.
choose p50 when the primary viewing distance is around 40 meters or more. the larger pitch works with that distance while enabling the high transparency and lightweight benefits of a mesh structure.
contact the manufacturer through the contact us page with your project dimensions, location, and display requirements. the product page also includes a request-a-solution path for detailed configuration help.
