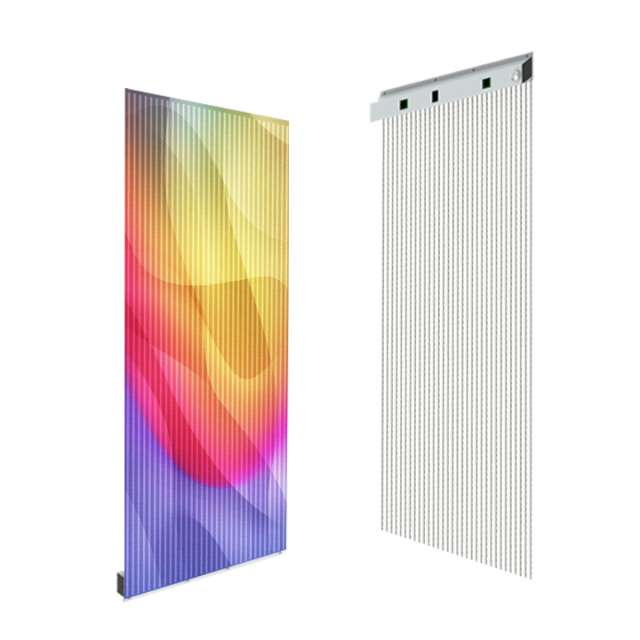

The LED Film Screen is a lightweight, flexible transparent display tailored for architectural glass integration, offering striking visuals with high transparency. Delivered by expert led screen manufacturers and custom led screen manufacturer, it ensures seamless installation and advanced control compatibility.
Performance parameter:| Pixel Pitch | 4-8/6.5/10/20 mm |
| Brightness | 2500/5000 nit |
| Weight per Cabinet | 5kg/Cabinet |
| Product number | Film screen P4-8 | Film screen P6.5 | Film screen P10 | Film screen P20 |
| Pixel pitch | 4*8mm | 6.5mm | 10mm | 20mm |
| Pixel density | 31250 Dots/㎡ | 23716Dots/㎡ | 10000Dots/㎡ | 2500Dots/㎡ |
| Module size | 1000*256mm | 1000*208mm | 1000*320mm | 1000*320mm |
| Power consumption | Average: 300W/㎡ maximum: 800W/㎡ |
Average: 300W/㎡ maximum: 800W/㎡ |
Average: 260W/㎡ maximum: 700W/㎡ |
Average: 120W/㎡ maximum: 280W/㎡ |
| Screen transparency | 60% | 60% | 80% | 90% |
| screen brightness | 5000cd/m² | 5000cd/m² | 5000cd/m² | 2500cd/m² |
| Visible distance | 4m～100m | 6.5m～100m | 10m～100m | 20m～100m |
| Pixel composition | RGB | |||
| Display thickness | 5mm | |||
| LED light tube | SMD2121 | |||
| Driver IC | Light driver in one (customized) | |||
| Screen weight | Less than 5kg/㎡ | |||
| power supply | Yuanchi 400W (with PFC) | |||
| Connector | Copper material | |||
| Wire and Cable | National standard multi-core wire, certified | |||
| PCB board | International A material | |||
| Protection level | IP30 | |||
| Flatness | Seam between modules <0.1mm | |||
| average life span | More than 100,000 usage hours | |||
| out of control point | ＜ 1/10000 (when used continuously) | |||
| Power supply requirements | 220V±10%; AC50HZ, three-phase five-wire | |||
| continuous working time | greater than 72 hours | |||
| Warranty | Two years | |||
| Light emitting components | Nationstar, Huacaiwei | |||
| Dimming | ≥256Level(adjustment) | |||
| perspective | 140 horizontally, 140 vertically | |||
| Grayscale | 65536 levels of grayscale | |||
| White point color temperature | 5500K-9300K | |||
| Image adjustment | White balance, contrast, vision, tone adjustment | |||
| Image Processing | Images are processed with noise reduction, enhancement, motion compensation, and color coordinate transformation | |||
| Drive mode | Constant current drive | |||
| scanning method | Static | |||
| Leakage current to earth | ＜ 2mA | |||
| Signal processing capabilities | ＞10bit | |||
| Brightness uniformity | When the entire screen is the brightest monochrome, the minimum pixel brightness/maximum pixel brightness is greater than 0.95 | |||
| decay rate | Less than 0.05% for 2 years | |||
| Contrast | 2000：1 | |||
| Refresh frequency | 3840HZ | |||
| frame change frequency | ＞60HZ | |||
| video input | Compatible with PAL\NTSC TV signals, compatible with HDTV and SDTV | |||
| Software interface | WINDOWS7、NT、XP、2000 | |||
| display mode | 32-bit true color 1024X768 | |||
| mean time between failures | ＞10000hours | |||
| Lamp bead defective pixel rate | Less than one ten thousandth, and distributed discretely | |||
| Control System | Colorlight, Mocell, Nova synchronous/asynchronous | |||
| Use a ring mirror | "◆Working environment: -10～+65 ℃/ 10～90 %RH ◆Storage environment: -40～+85 ℃/ 10～90 %RH" |
|||
| Certification | 3C | |||
| Installation method | Mounting, hoisting, fixed installation, supports cutting and bending to any size. | |||
Functional Design for Glass Integration and Target Users
The LED Film Screen serves as a versatile transparent display specifically engineered for integration with glass surfaces in commercial and architectural contexts. Designed by specialized led screen manufacturers, this product targets architects, engineers, and systems integrators looking to enhance building facades, skylights, or indoor partitions with dynamic visual content while maintaining transparency. Its lightweight composition—below 5 kg per square meter—and flexibility allow for seamless adaptation to curved or irregular glass surfaces. The solution is particularly suited for providers needing a custom led screen option that accommodates varied pixel pitches and sizing without structural constraints.
Advanced Technical Features and Measurable Specifications
This display solution features a pixel pitch range from P4-8 mm to P20 mm, enabling tailored resolution and visibility distances up to 100 meters, depending on model. With brightness levels reaching 5000 cd/m² for finer pitches and up to 90% transparency, the LED Film Screen balances vivid imagery and see-through clarity. It employs an ultra-thin 5 mm thickness and IP30 protection, cooled by a built-in light driver system compatible with Colorlight and Novastar controls to streamline integration. Additionally, it features durable SMD2121 LED tubes, low energy consumption averaging 300W/m², and a lifespan exceeding 100,000 hours, providing reliable operation under temperatures from -10 to +65 °C, fulfilling stringent performance and durability requirements validated by leading led screen manufacturers.
Diverse Industry Applications and Integration Value
The LED Film Screen is widely applied in commercial plazas, theaters, retail storefronts, and architectural landmarks where preserving natural light and transparency is critical. As a preferred solution from reputable led light suppliers, it supports enhanced branding and information display on glass facades without obstructing external views. The screen's ease of installation with pre-applied adhesive mounting and compatibility with popular control systems enable fluid integration into existing video infrastructure. This makes it an effective choice for projects demanding high-impact digital signage, dynamic exhibits, or trade show installations requiring both aesthetic appeal and engineering precision, contributing to ROI through lasting performance and maintenance simplicity.
Structural and Design Advantages for Flexible Architectural Installations
This LED Film Screen model demonstrates exceptional structural innovation through its ultra-thin, lightweight design and modular architecture that supports cutting and bending without size limitations. Developed by a leading led light factory, the screen’s flexible modules adapt to complex glass geometries without compromising flatness or image continuity, maintaining module seam under 0.1 mm. The patented driver-in-one system consolidates power and control circuits, simplifying installation and reducing potential failure points. Its IP30-rated design permits secure indoor or semi-protected outdoor applications, aligning with standards required by outdoor led screen manufacturers where moderate environmental exposure occurs.
Performance and Operational Benefits for End Users
From a usability perspective, the LED Film Screen offers stable, high-uniformity brightness with a contrast ratio of 2000:1 and 256-level dimming control, ensuring visual clarity in ambient light conditions typical of architectural installations. Supported by robust video input compatibility (PAL/NTSC HDTV and SDTV) and advanced image processing (noise reduction, motion compensation), it delivers exceptional image quality critical for corporate branding and public information. Maintenance is streamlined through pre-applied adhesive mounting, expediting deployment times favored by project engineers sourcing led light solutions with proven reliability. The long lifespan combined with a two-year warranty secures total cost of ownership benefits, making this product well-suited to professional environments demanding reduced downtime and consistent performance.
High-Visibility Commercial Plaza Installations
In commercial plaza environments such as shopping centers or public squares, the LED Film Screen functions as a cutting-edge transparent signage solution that integrates with glass storefronts or facades. Outdoor ambient light conditions necessitate high brightness and elevated transparency, achieved by this product’s 5000 cd/m² output and up to 90% transparency depending on pitch. As an option frequently sourced from outdoor led screen suppliers, it supports curved building contours through its flexible design, facilitating architectural aesthetic compliance. The system’s compatibility with Colorlight and Novastar controls contributes to seamless integration with existing urban video networks, providing real-time content updates and targeted advertising in high foot traffic locations.
Architectural Glass Facades and Dynamic Branding Applications

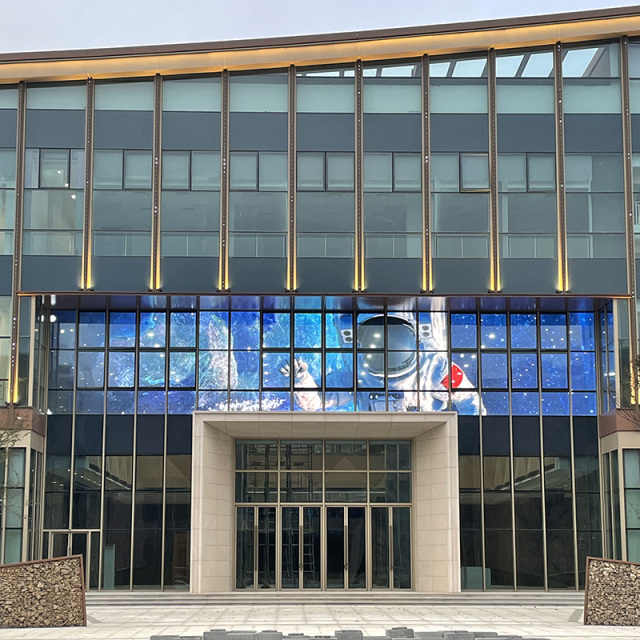

Within architectural settings, the LED Film Screen is deployed on glass curtain walls and skylights to enable immersive visual experiences without sacrificing daylight or outward views. Acting as an overlay on architectural glass, this display provides dynamic branding capabilities for commercial or cultural buildings, leveraging its lightweight construction and modular customization from a reputable custom led screen manufacturer. The robust technical specifications guarantee compliance with safety and visual standards, allowing integration within complex building management systems. Moreover, its quick installation via adhesive mounting and cutting adaptability enhances project delivery timelines for architectural engineers requiring reliable transparent display integration for both permanent and temporary digital signage solutions.
What installation options are available for your LED Film Screen?
Our LED Film Screen supports multiple installation methods including mounting, hoisting, and fixed installation. Thanks to its lightweight design and pre-applied adhesive mounting, the screen can be easily installed on glass surfaces or curved architectures, ensuring flexible and reliable integration for various projects.
Can you customize the LED Film Screen size or pixel pitch for specific project needs?
Yes, we offer customized solutions with no size restrictions due to the film’s flexible and cuttable nature. Available pixel pitches include P4-8 mm, P6.5 mm, P10 mm, and P20 mm, allowing you to select the optimal resolution and display performance. Contact us to discuss your project requirements for a tailored LED screen solution.
How does your LED Film Screen maintain transparency while displaying high-quality images?
Our transparent LED Film Screen balances up to 90% transparency with bright, vivid imagery—reaching brightness levels up to 5000 cd/m² depending on the model. This unique design preserves glass visibility, making it ideal for architectural applications where maintaining clear sightlines is essential.
What support do you provide for clients purchasing from a leading LED light manufacturer?
As a trusted led light manufacturer, we back our LED Film Screen with a two-year warranty and long lifespan exceeding 100,000 hours. Our technical team assists with integration, and the product’s compatibility with led screen manufacturers’ control systems like Colorlight and Novastar ensures smooth operation in your infrastructure.
