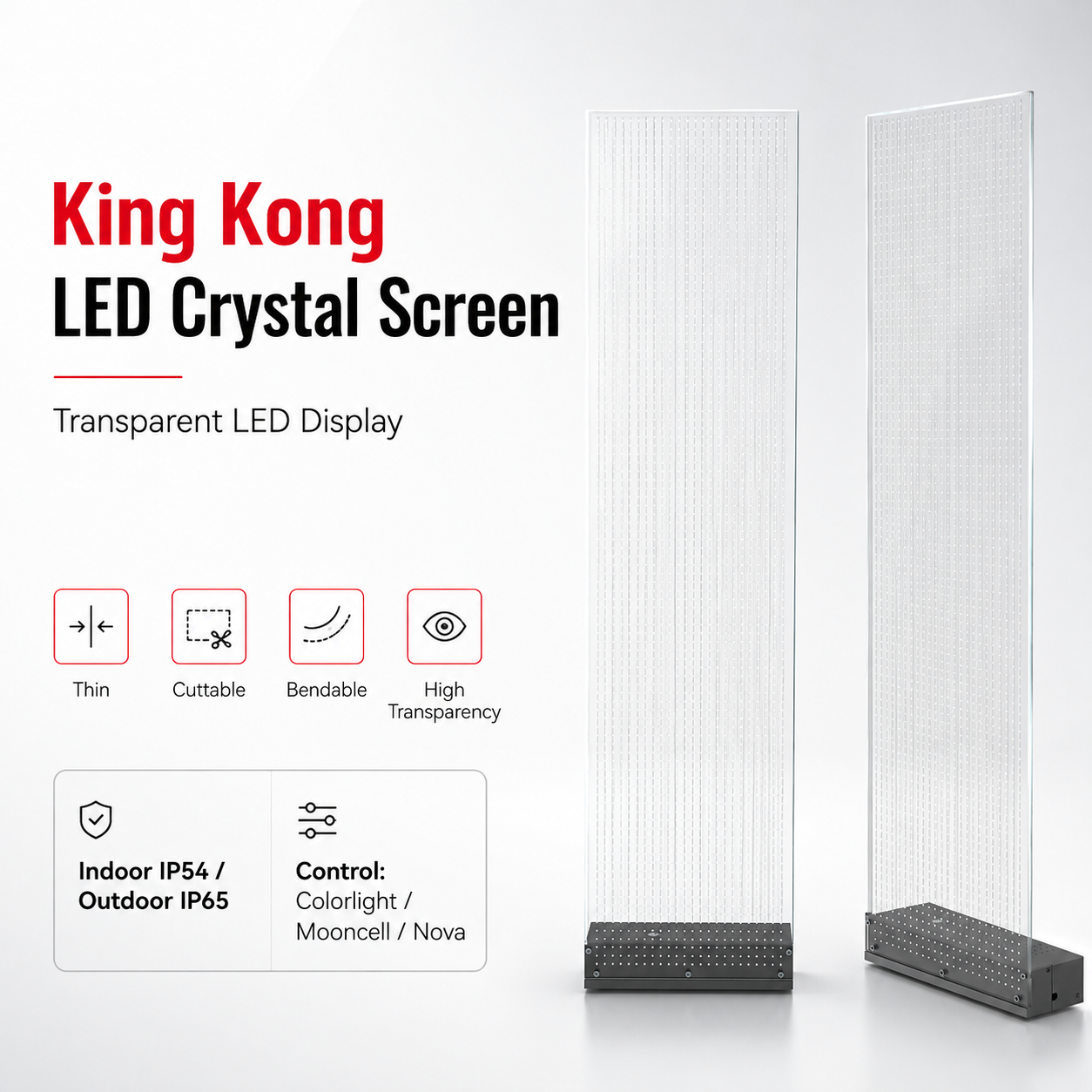

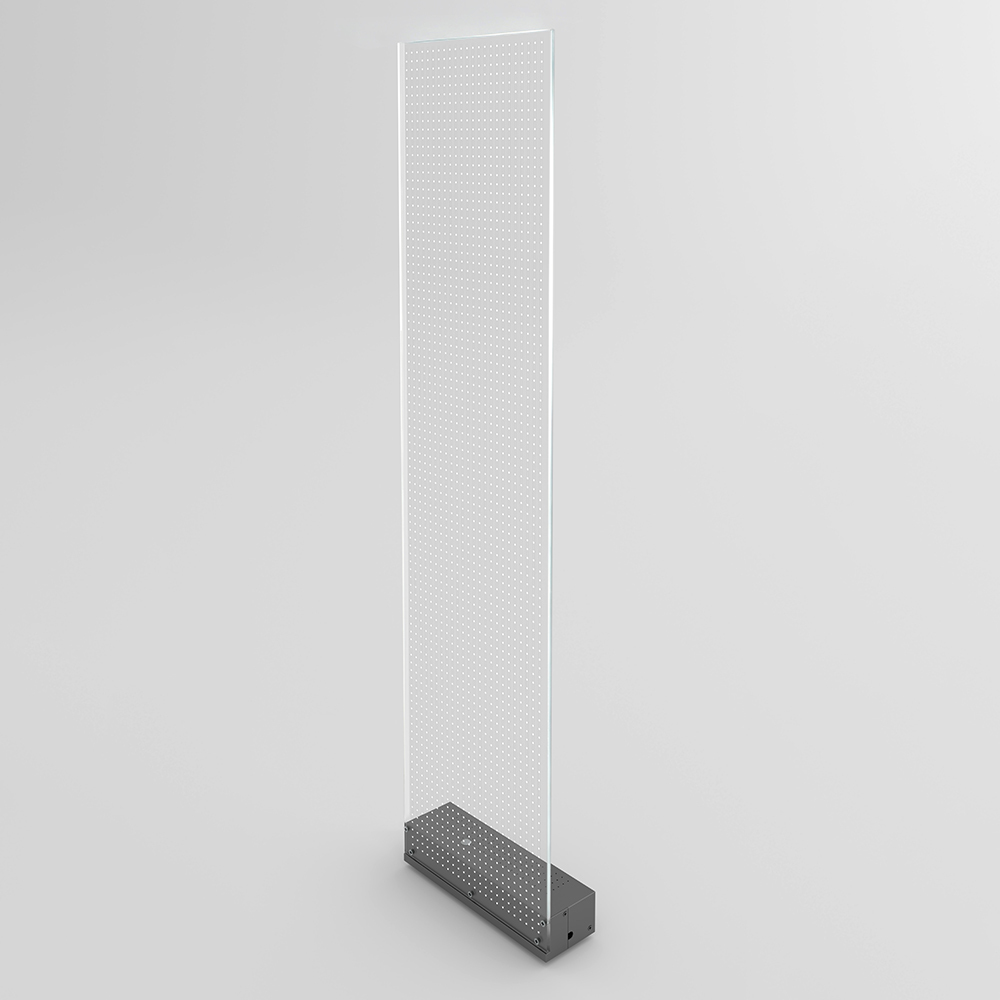

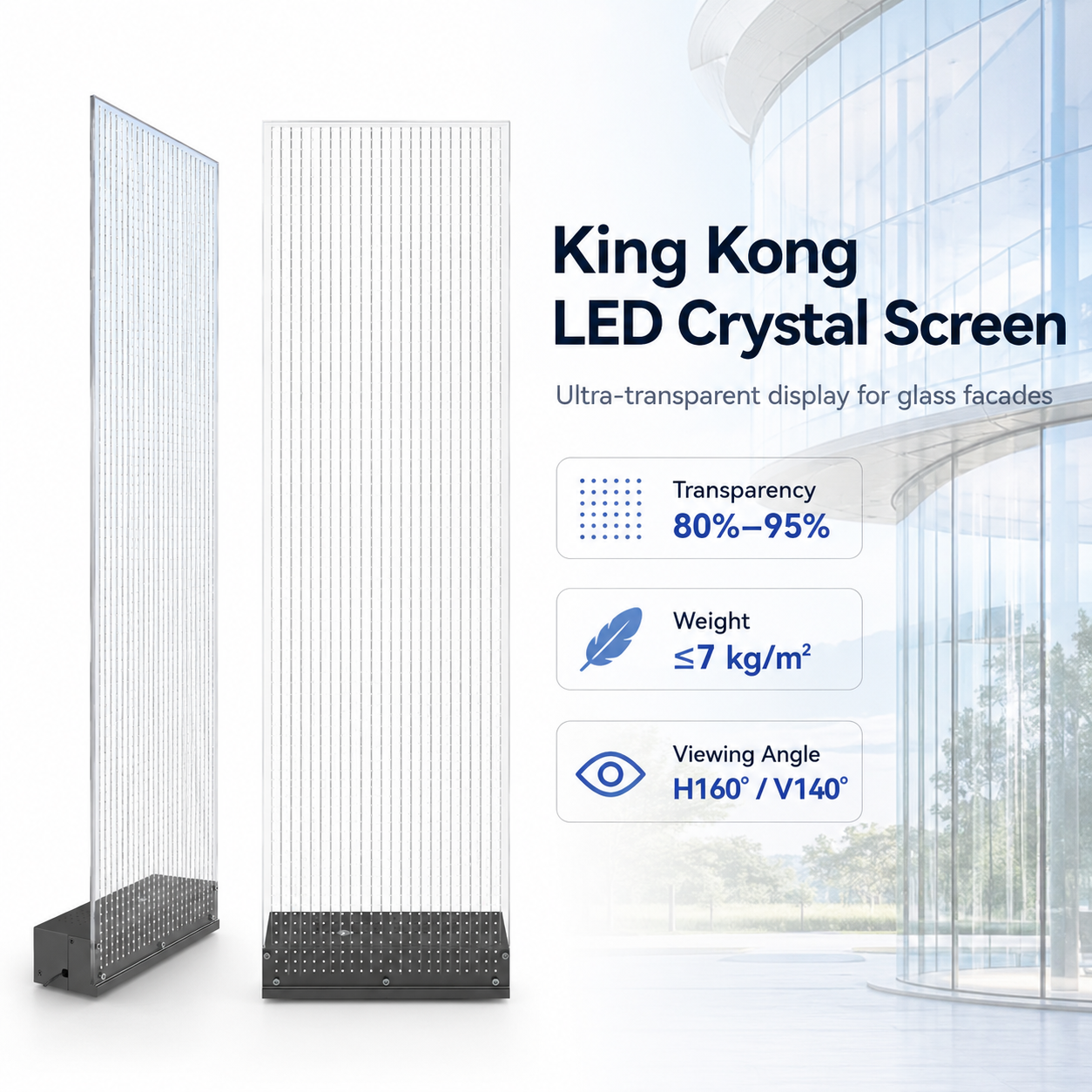

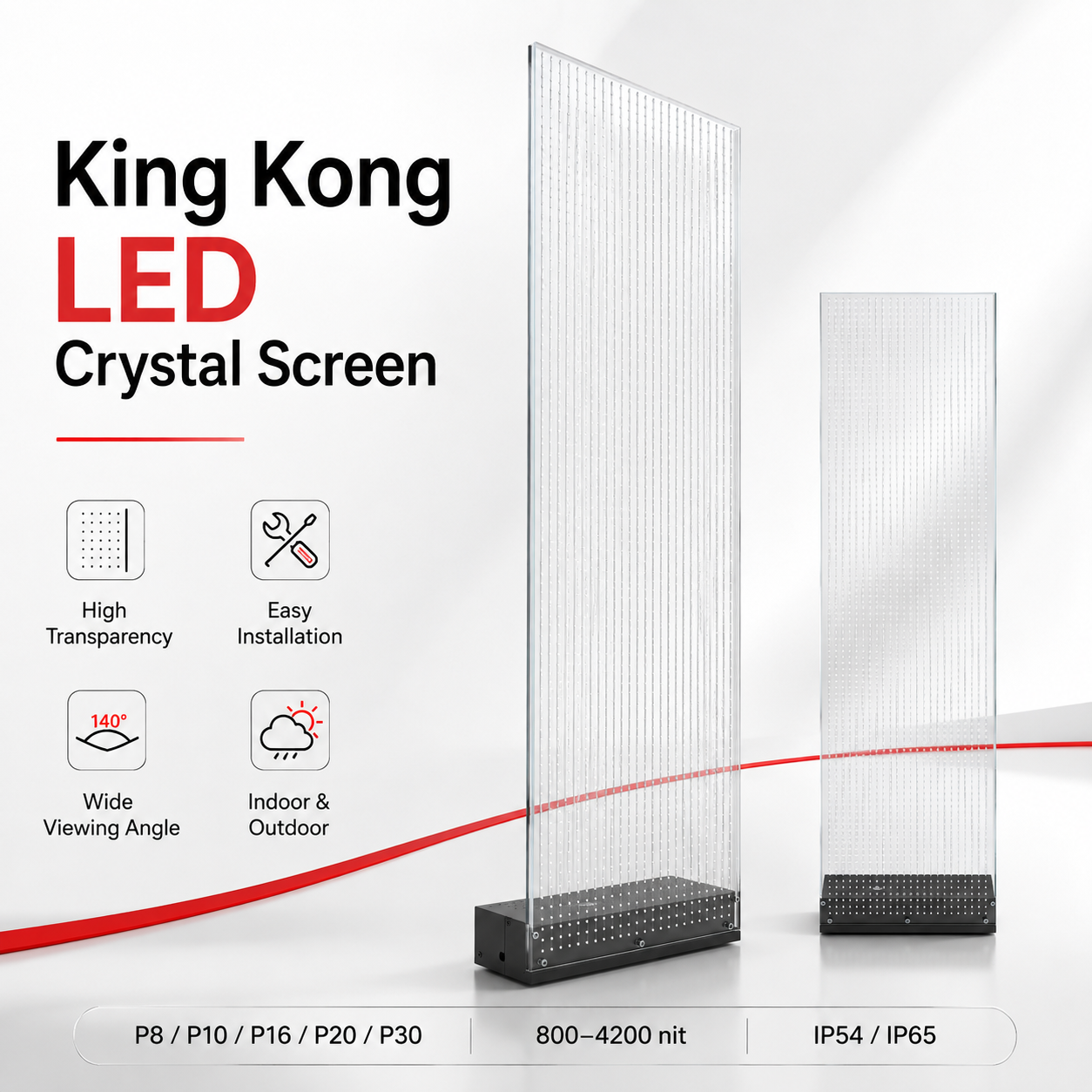

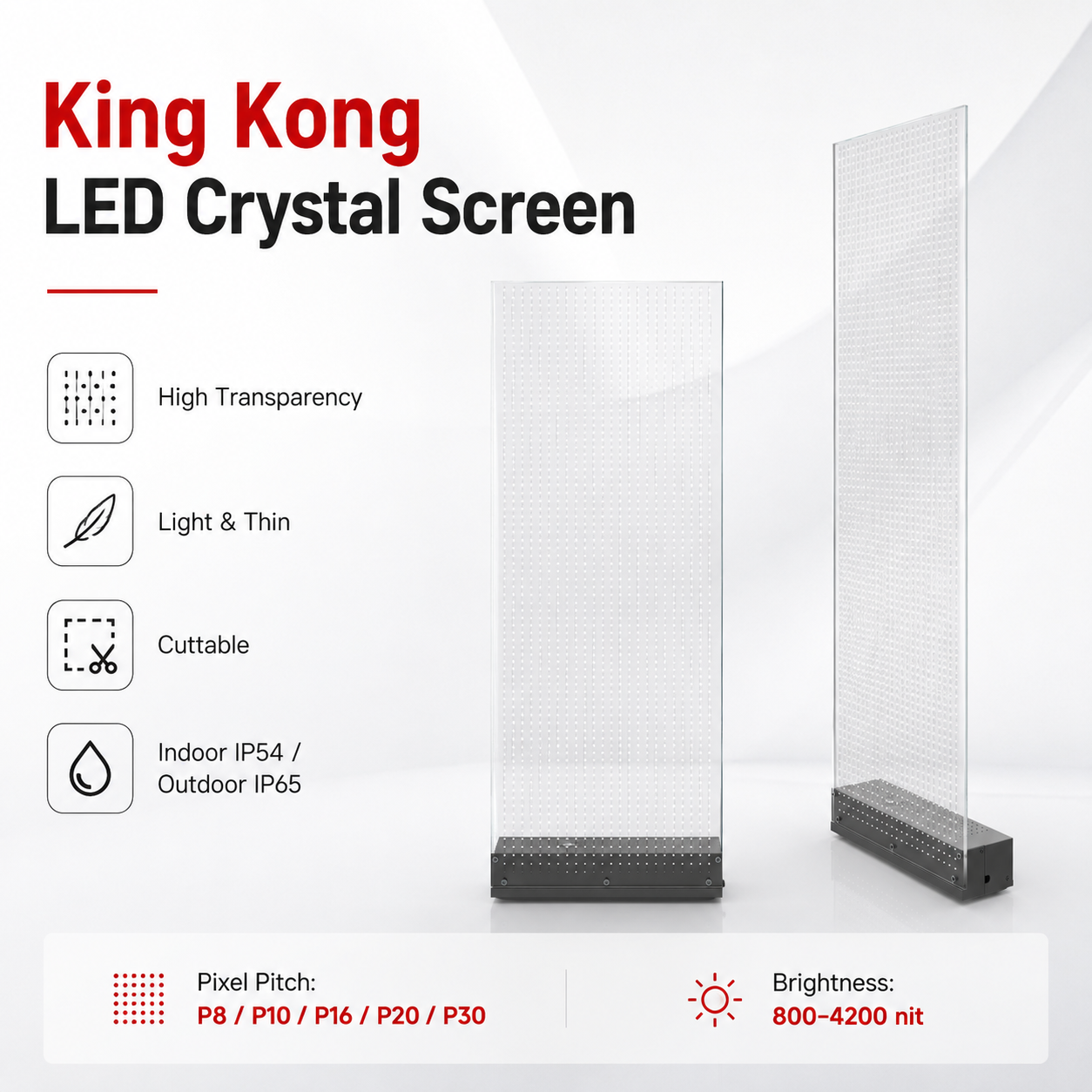

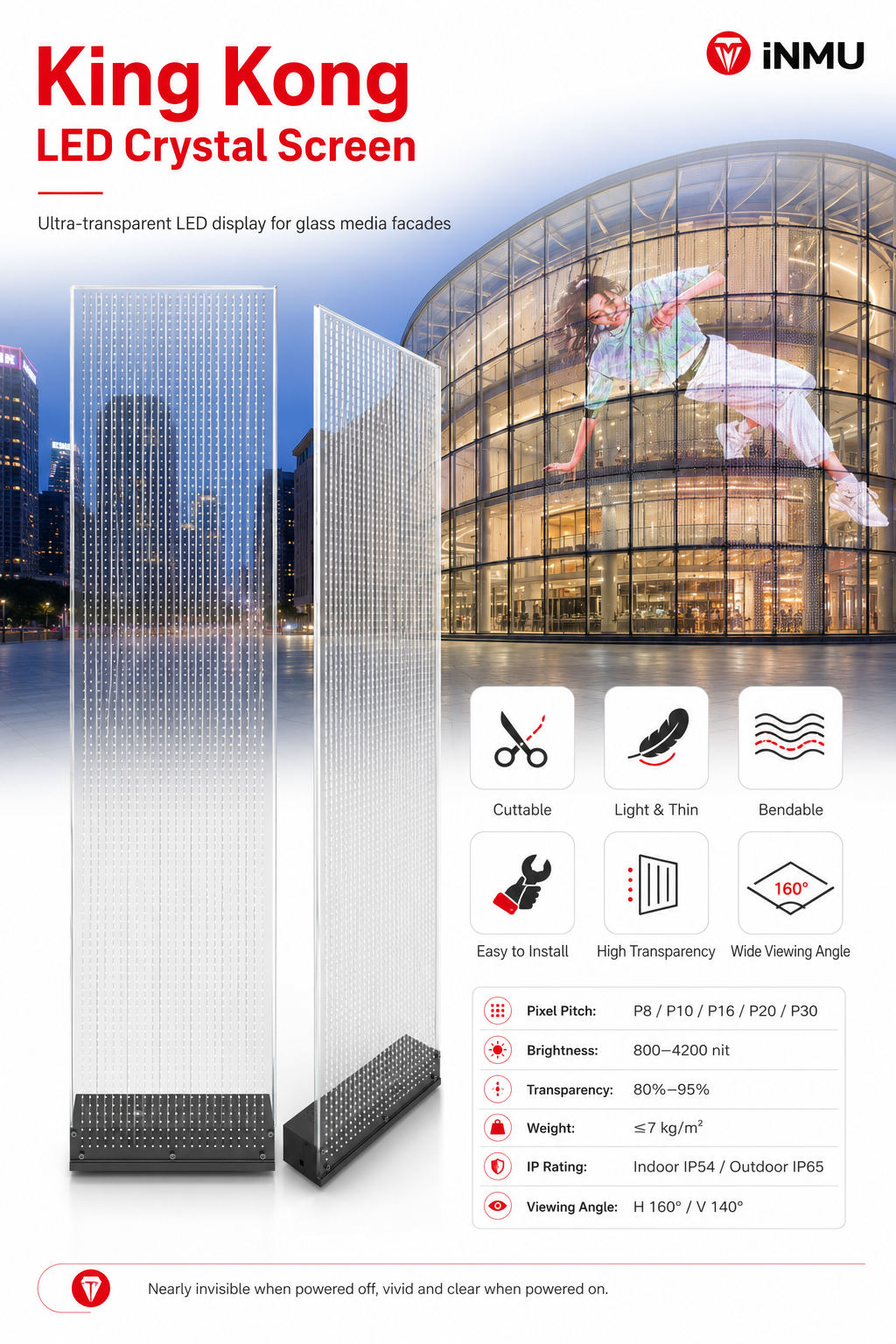

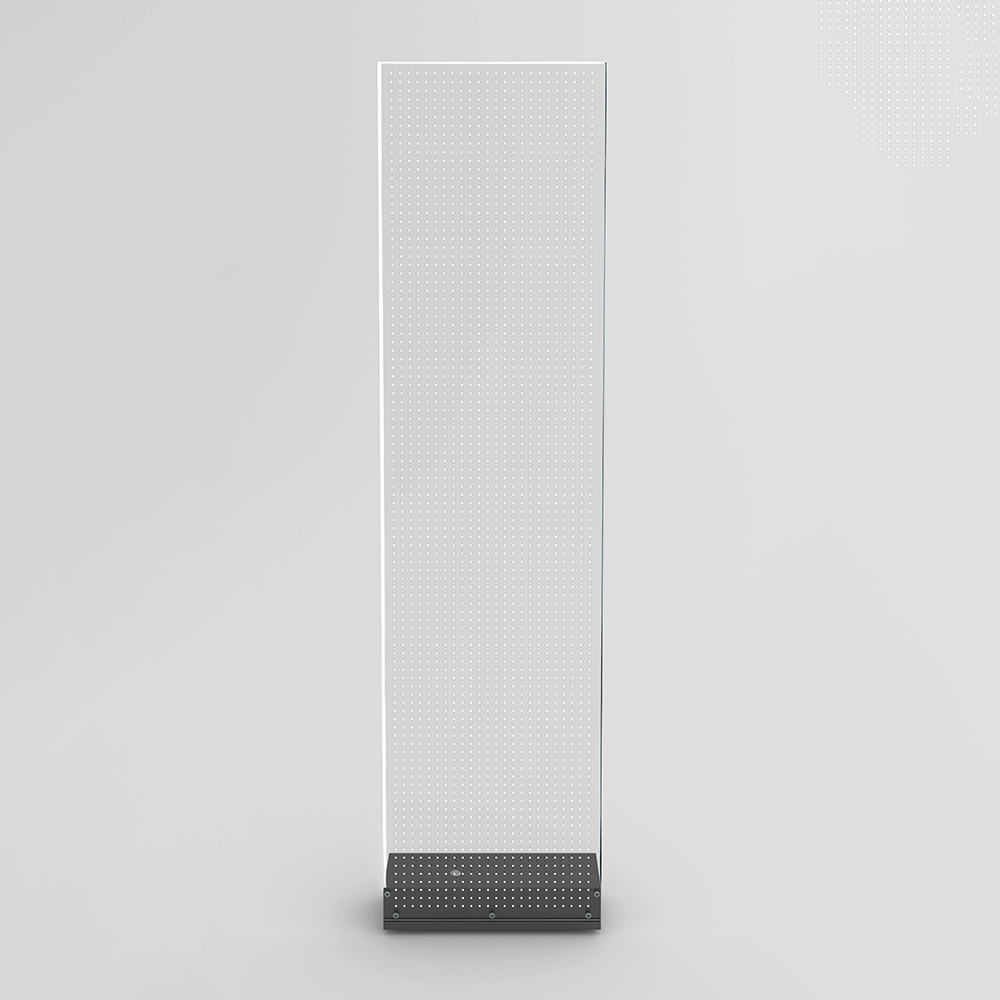

The King kong LED Crystal Screen is a lightweight, flexible transparent display tailored for architectural glass integration, offering striking visuals with high transparency. Delivered by expert led screen manufacturers and custom led screen manufacturer, it ensures seamless installation and advanced control compatibility.

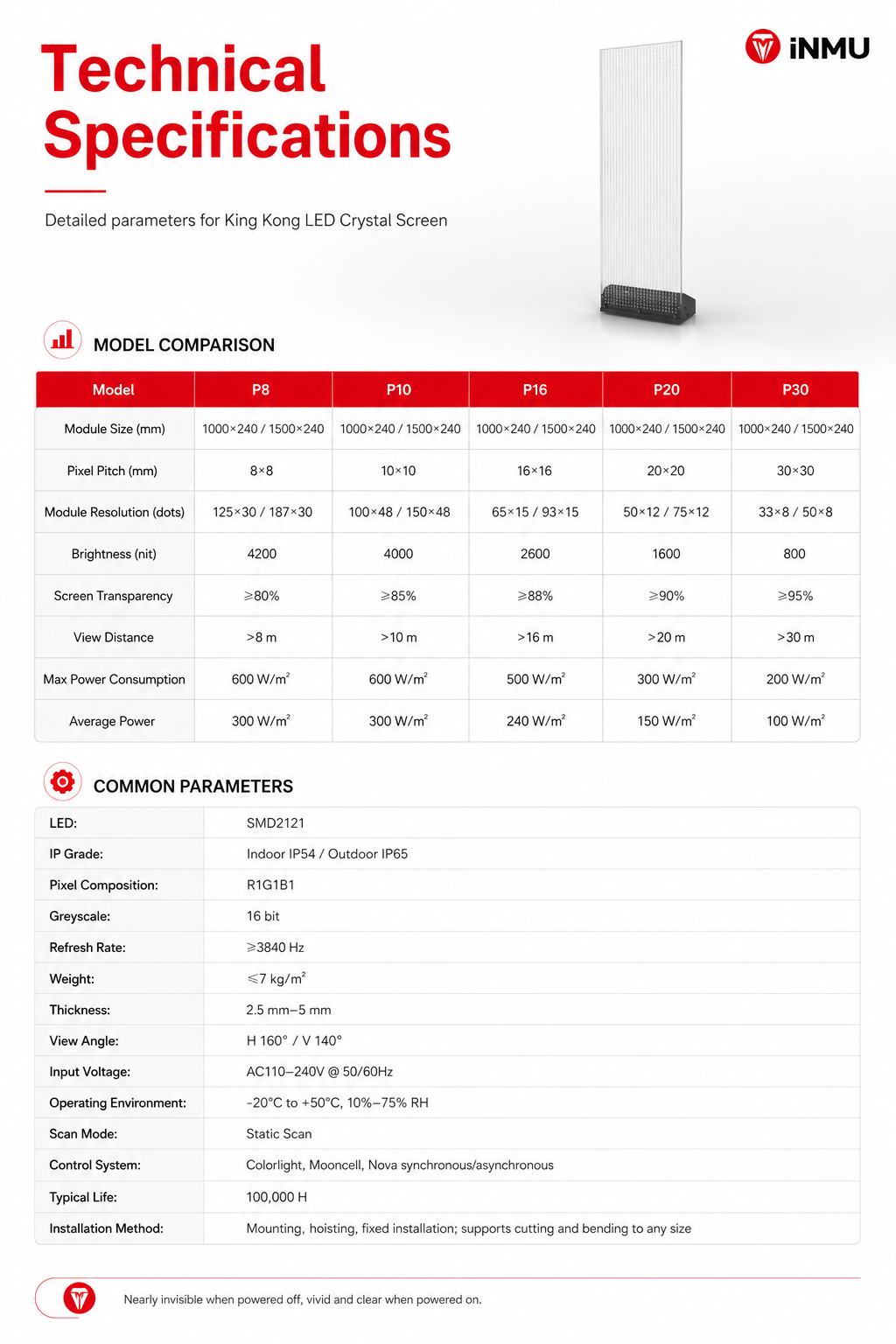

Performance parameter:| Pixel Pitch | 8/10/16/20 mm |
| Brightness | 800~4200 nit |
| Weight | ≤7kg/㎡ |
| Model | P8 | P10 | P16 | P20 |
| Module size(mm) | 1000*240/1500*240 | 1000x240/1500*240 | 1000*240/1500*240 | 1000x240/1500*240 |
| Pixel pitch(mm) | 8*8 | 10*10 | 16*16 | 20*20 |
| Module resolution(dots) | 125*30 / 187*30 | 100*48 / 150*48 | 62*15 / 93*15 | 50*12 / 75*12 |
| Brightness(nit) | 4200 | 4000 | 2600 | 1600 |
| Screen transparency | ≥80% | ≥85% | ≥88% | ≥90% |
| View distance | >8m | >10m | >16m | >20m |
| max power consumption | 600W/㎡ | 600 W/㎡ | 500 W/㎡ | 300 W/㎡ |
| Average power | 300w/㎡ | 300w/㎡ | 240w/㎡ | 150w/㎡ |
| LED | SMD2121 | |||
| IP Grade | Indoor IP54 / Outdoor IP65 | |||
| Pixel composition | R1G1B1 | |||
| Grey scale | 16bit | |||
| Refresh rate | ≥3840hz | |||
| Weight | ≤7kg/㎡ | |||
| Thickness | 2.5mm-5mm | |||
| view Angle | H: 160° / V: 140° | |||
| Input voltage | AC110-240V @50/60Hz | |||
| Work environment | -20℃~+50℃,10%-75RH | |||
| Scan Mode | Static Scan | |||
| Control system | Colorlight, Mooncell, Nova synchronous/asynchronous | |||
| Typical value of life | 100,000H | |||

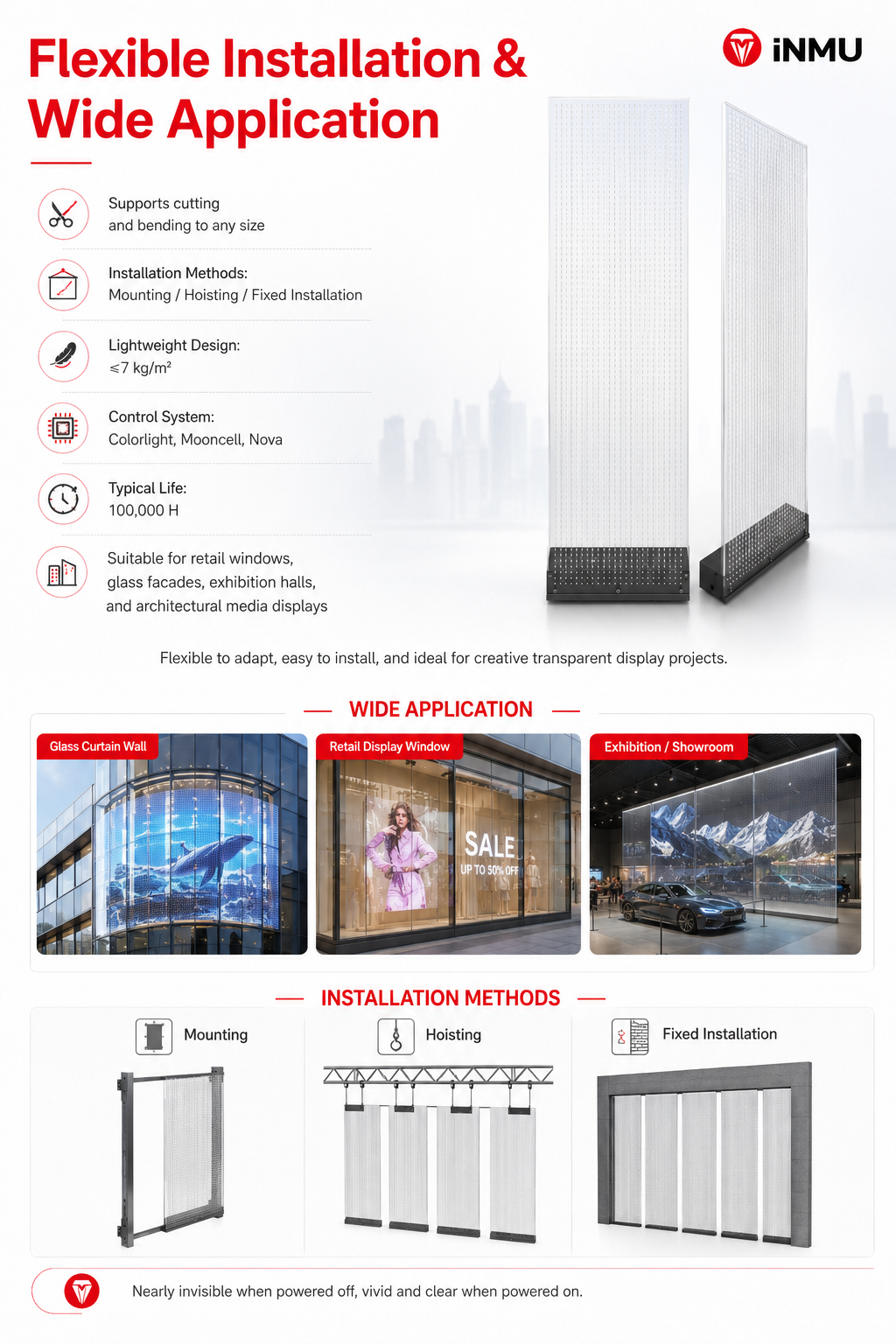

| Installation method | Mounting, hoisting, fixed installation, supports cutting and bending to any size. | |||
| Power supply requirements |
AC 220V ± 10%, 50-60Hz, (optional wide voltage 110V and 9-36V) | |||
| Working temperature Playback System |
（-0°-50°C） | |||
| Theoretical service life Visible Distance |
100000 hours | |||

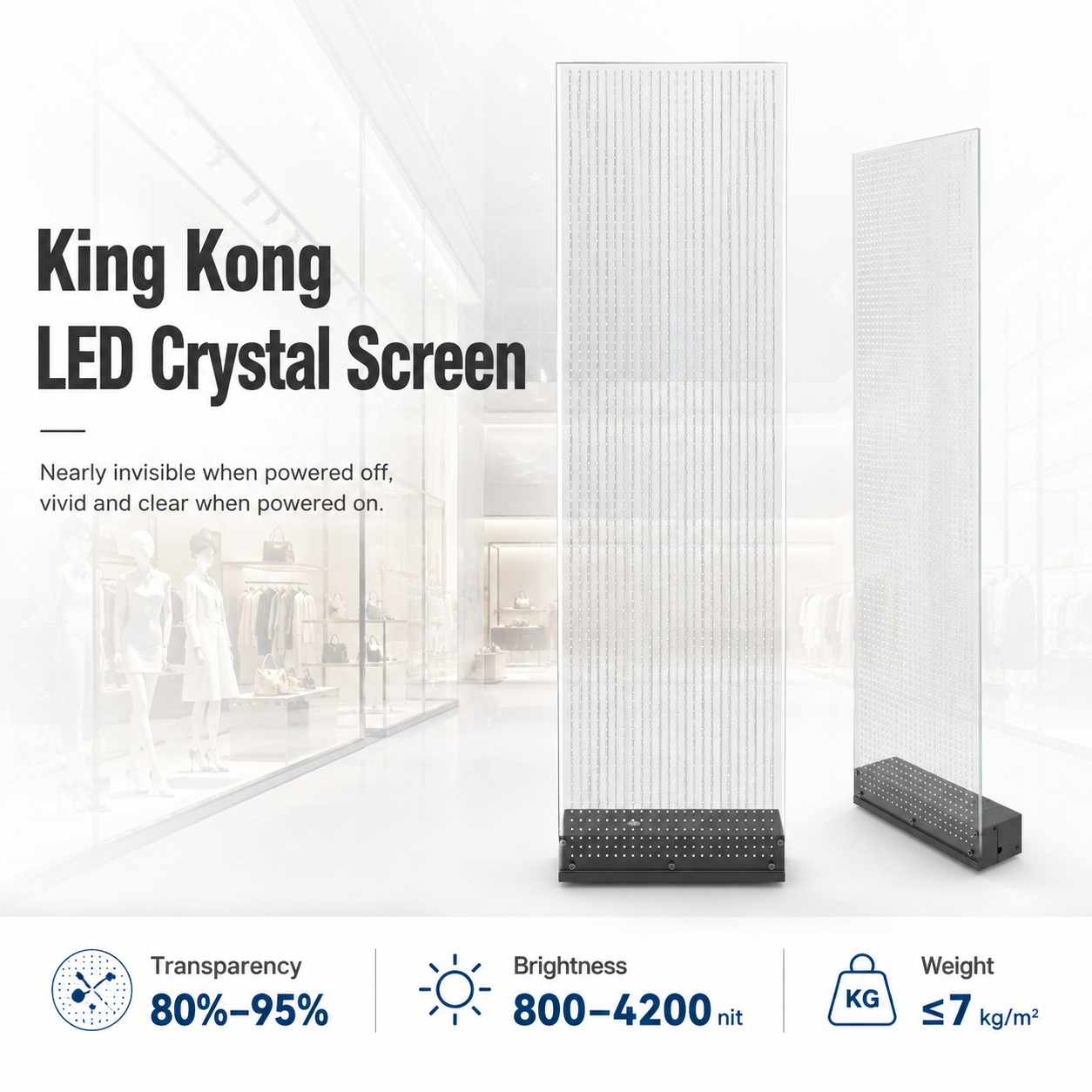

High Transparency
Transparency up to 85%~95%; nearly invisible when powered off, preserving natural daylight and original visual effect of glass without blocking indoor lighting.Enhanced Protection Grade
Double-layer hard cover encapsulation, scratch-proof, dust-proof and UV-resistant; outdoor version reaches IP65 waterproof & dustproof rating for all-weather operation.
