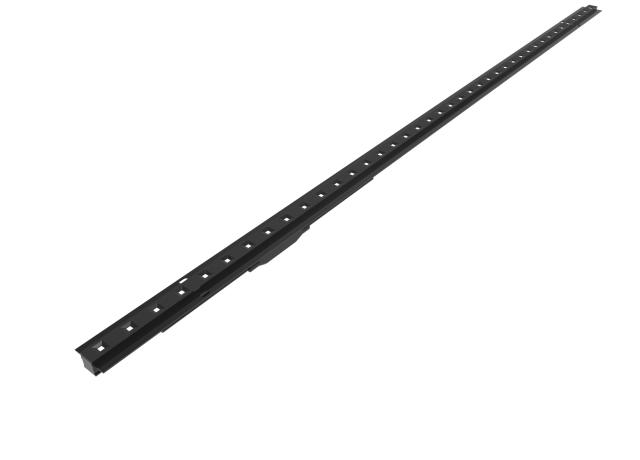

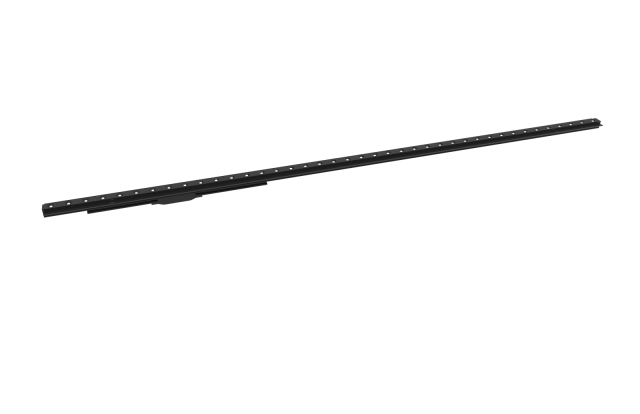

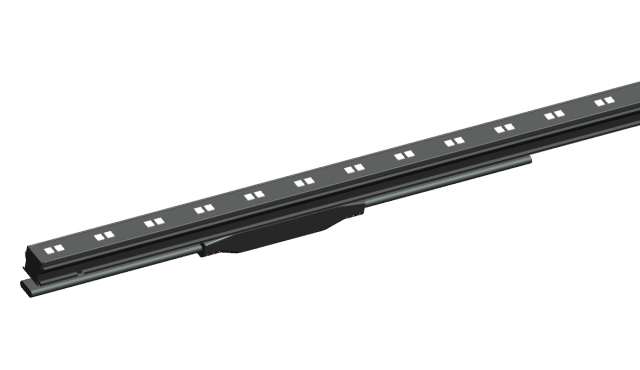

The F2115 LED Bar Light is a modular, outdoor-rated solution from trusted led light manufacturers, offering IP67 protection, flexible voltage, and precise control. Ideal for reliable architectural illumination and led light solutions requiring durability and adaptability.
Performance parameter:| Light Source Brand | SMD3535 |
| Voltage | DC24V-DC48V wide voltage |
| Degree of protection | IP67 |
| Model | 2115 | 2117 | 3415 | 3027 | 5426 |
| Light Source Brand: | SMD3535 | ||||
| Power: | 10W/m | 18W/m | |||
| Average power: | 5W/m | 9W/m | |||
| Voltage | DC24V-DC48V wide voltage | ||||
| Pixel composition | 1R1G1B | 4R4G4B | 6R6G6B | ||
| Light bar size: | 21mm*1500mm | 21mm*1500mm | 34mm*1500mm | 53.6mm*1000mm | |
| Light bar resolution: | P25-1pix*60pix/piece;p31.25-1pix*48pix | 1pix*20pix/piece | |||
| Illumination angle: | 110 °/110 ° | 90°/45° | 110°/110° | 120°/120° | |
| Grayscale: | Class 65536 | ||||
| Refresh rate: | >5000HZ | ||||
| Control mode | Parallel control | DMX512 | |||
| Degree of protection: | IP67 | ||||
| Operating temperature: | -20℃ ~ 50℃ | ||||
| Service life: | ≥ 50000 hours | ||||
| Relevant certification: | CE ROHS FCC | ||||
Targeted Outdoor Lighting Solution for Professional Installations
The F2115 LED Bar Light is engineered to meet the demanding needs of commercial and architectural lighting providers, making it a preferred choice among led light suppliers and led light manufacturers for outdoor installations. This modular product supports various pixel configurations and multiple model sizes (2115, 2117, 3415, 3027, 5426), enabling precise and continuous illumination. Its design accommodates applications requiring scalable and dependable lighting along building façades and borders, tailored for system integrators, lighting engineers, and procurement managers seeking robust led light solutions with extended operational longevity and compatibility with existing lighting networks.
Advanced Technical Specifications Deliver Enhanced Performance
Featuring IP67-rated waterproof and lightning protection, this LED bar light supports a wide voltage input range from DC24V to DC48V, enabling flexible deployment in varied outdoor environments. The device incorporates parallel DMX512 control for consistent operation with fail-safe capabilities. Technical highlights include a high grayscale resolution of 65,536 levels and a refresh rate exceeding 5000Hz, yielding smooth, vivid visuals critical to professional outdoor displays. Available light bar sizes and pixel densities allow for tailored configurations that meet stringent engineering standards. Certified by CE, ROHS, and FCC, the F2115 meets regulatory and quality assurance requirements demanded by led light factories and led light manufacturers.
Broad Industry Applications for Reliable Architectural Lighting
This LED bar light series finds critical use across multiple outdoor settings, including architectural façade illumination, landscape lighting, signage backlighting, and event staging, where weather resistance and durability are paramount. Many outdoor led screen manufacturers and outdoor led screen suppliers integrate these bars for consistent ambient and accent lighting solutions in commercial storefronts, public landmarks, and infrastructure projects such as bridges and piers. The F2115’s modularity and parallel control systems support complex lighting schemes, enabling seamless workflows within urban landscape lighting projects, thereby adding value to large-scale deployments demanding long-term reliability and ease of maintenance.
Product Advantages
Modular Structure and System Compatibility for Scalable Integration
Designed with a flexible, modular architecture, the F2115 LED Bar Light allows straightforward scalability and adaptability for integration into complex lighting networks commonly required by led light manufacturers and led light suppliers. The system’s parallel DMX512 control architecture ensures redundancy, minimizing the risk of full system failure from individual point issues. Its construction includes weatherproof housings with IP67 certification and surge protection features that adhere to compliance standards relevant to outdoor led screen manufacturers and led screen manufacturer environments. This structural design philosophy facilitates efficient installation workflows and simplifies maintenance across diverse application sites.
High Performance and User-Centric Reliability in Outdoor Settings
The F2115 provides superior user value with a long service life exceeding 50,000 hours and stable performance metrics including high refresh rates and grayscale depth for clear, flicker-free illumination. Its wide voltage tolerance from DC24V to DC48V supports versatile power sourcing scenarios encountered by led light factories and led light manufacturers. The emphasis on smooth and vivid light output enhances visual consistency, critical for architectural and commercial lighting strategies. These performance aspects combined with IP67 protection make this product a reliable choice, reducing downtime and maintenance costs for system operators and end-users in outdoor environments.
Use Scenarios
Architectural Facade Lighting in Urban Environments
In the context of urban architectural lighting, the F2115 LED Bar Light supports continuous linear illumination along building exteriors, enhancing structural features with consistent color and brightness. This application demands rugged, weatherproof solutions, a requirement met by the product’s IP67 waterproof rating and certification compliance from led light manufacturers and outdoor led screen suppliers. Its modular installation method integrates seamlessly with DMX512 control systems typically used by urban landscape lighting designers, ensuring precise operation and reliable redundancy in large-scale façade lighting projects. The light’s high grayscale and refresh rate contribute to vivid, detailed visuals required for landmark building treatments.
Outdoor Event and Commercial Space Illumination
The F2115 serves as a dependable component in outdoor events and commercial environment lighting, where weather resistance and system flexibility are essential. As a product favored by led screen manufacturers and outdoor led screen manufacturers, it supports DMX512 control for dynamic lighting effects, crucial for stage and event production. Its robust design handles voltage variations typical of temporary setups while maintaining high visual quality at high refresh rates. The LED bar’s modularity facilitates rapid deployment, integration with existing led light solutions, and straightforward scale-up or reconfiguration according to event demands, ensuring operational efficiency and aesthetic impact.
What voltage range does the F2115 LED Bar Light operate within?
Our F2115 LED Bar Light supports a wide voltage input range from DC24V to DC48V, allowing flexible deployment across various outdoor installations. This versatility ensures compatibility with diverse power supplies, meeting your project's technical needs efficiently.
Can you customize the F2115 LED Bar Light for specific installation requirements?
Yes, we offer multiple model configurations—2115, 2117, 3415, 3027, and 5426—with different sizes and pixel compositions. This modular approach lets us tailor the LED solution to your outdoor architectural or commercial lighting project, providing precise, continuous illumination.
How does your LED light solutions ensure reliability in outdoor environments?
We design the F2115 with IP67 waterproof rating and built-in lightning protection to endure harsh weather. Additionally, parallel DMX512 control maintains continuous performance even if one point fails. All products are CE, ROHS, and FCC certified for long-term reliability in outdoor applications.
What support do you offer for installation and maintenance of your LED bar lights?
As an experienced LED light manufacturer, we provide technical guidance for installation and operation, ensuring smooth integration with your control systems. Our long-life products minimize maintenance needs, backed by reliable support for outdoor LED screen and lighting solutions.
