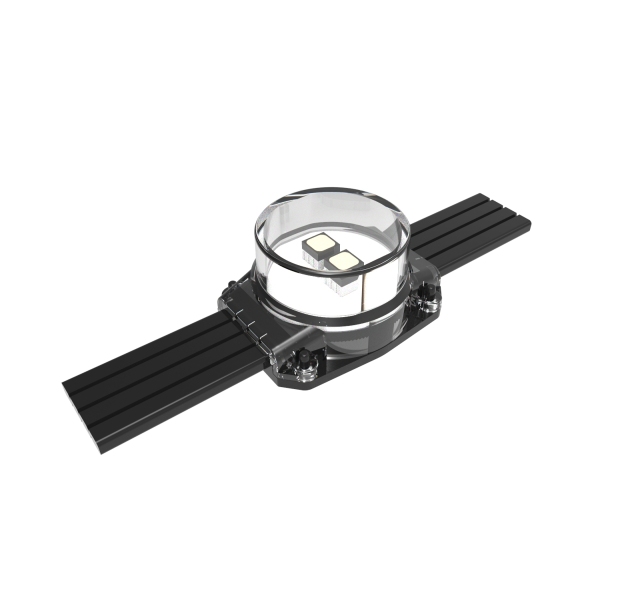

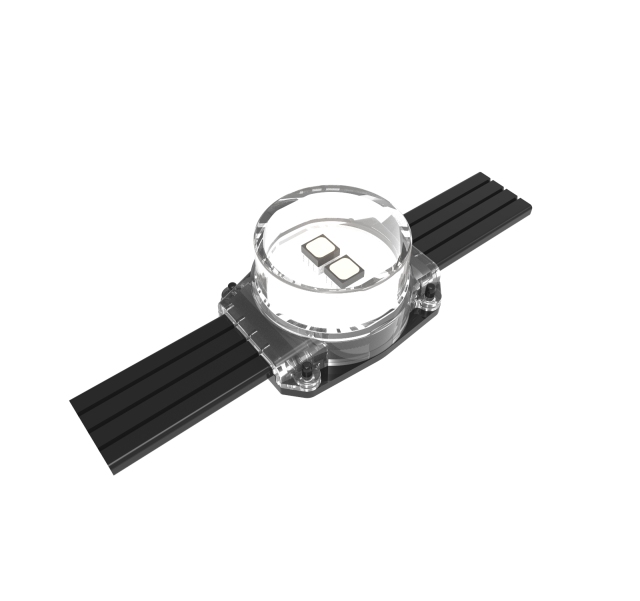

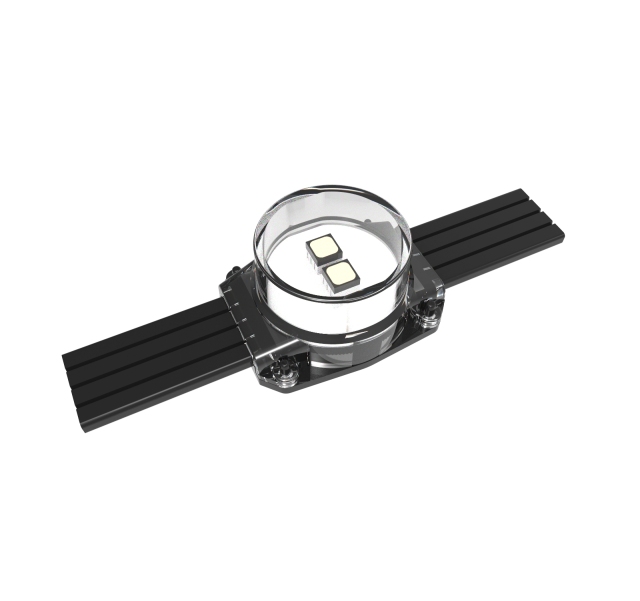

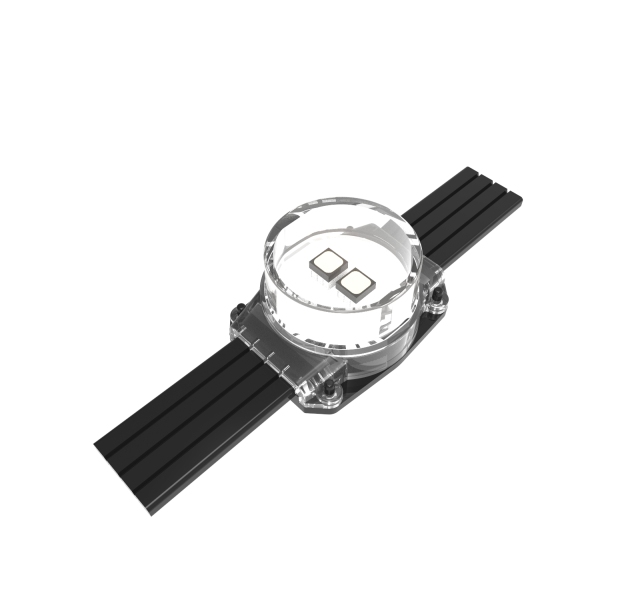

The Y22 LED Point Light offers precise DMX512 control with robust IP66 outdoor rating, delivering efficient RGBW color output. Designed by a trusted led light manufacturer, it suits advanced led light solutions.
Performance parameter:| Input Voltage | DC24-48V |
| Material | PC |
| Control Method | DMX512 |
Targeted Application and User Profile
The Y22 LED Point Light is engineered for professional lighting integrators and contractors engaged in architectural and outdoor display projects. As a product from a reputable led light manufacturer, it supports high-precision DMX512 control preferred by system designers requiring programmable color capabilities with RGBW output. This compact light is ideal for clients in urban landscape enhancement, signage retrofit, and media façade sectors who demand durable, weather-resistant installations compatible with complex led screen solutions. The focus is on providing consistent lighting effects that can be seamlessly integrated into broader custom led screen assemblies or standalone lighting arrays.
Technical Specifications and Performance Metrics
Incorporating a PC housing with an IP66-rated waterproof design, the Y22 LED Point Light demonstrates durability against harsh environmental conditions. It operates efficiently at DC24V with a minimal power consumption of approximately 0.72W per unit. The device features high CRI values exceeding 80, and a beam angle of 110°, ensuring uniform illumination. The color system offers RGBW with a DMX512 control interface, facilitating precise color mixing and programmable lighting sequences. The design employs connectorless snap-fit installation methods, enabling flexible and rapid deployment in various configurations. Its lifespan surpasses 50,000 operational hours, emphasizing long-term reliability for demanding outdoor applications common among led screen manufacturers.
Real-World Applications and Industry Integration
This LED point light solution caters to critical outdoor architectural lighting implementations including building façades, signage illumination, and event environment enhancement. Its RGBW color capability allows media façades and sculptural displays to achieve vibrant, dynamic visual effects while maintaining energy efficiency. The module’s compatibility with advanced control protocols offers scalability in multi-unit led light factory productions, enabling integrators to customize lighting arrays tailored to specific site requirements. Organizations aiming to enhance urban aesthetics or brand visibility can deploy the product to improve the impact of public installations, retail displays, and outdoor entertainment venues, consistent with industry standards upheld by outdoor led screen manufacturers.
Product Advantages
Design and Structural Integration Strengths
Constructed with a flame-retardant, UV-resistant PC body, the Y22 LED Point Light is designed for endurance in outdoor environments, incorporating IP66 sealing for dust and moisture protection. Its snap-fit, connectorless installation system streamlines assembly, reducing labor costs and installation time, which is beneficial for led light suppliers managing large-scale projects. The modular design accommodates multiple installation methods, allowing ease of integration within custom led screen configurations or standalone applications. Furthermore, its control versatility supports both DMX512 and SPI variants, providing system designers with adaptable led light solutions tailored to complex architectural lighting demands.
Operational Efficiency and User-Centric Performance
With a power consumption of 0.72W and a rated lifespan exceeding 50,000 hours, this point light delivers sustained illumination with reduced maintenance needs, optimizing total cost of ownership for procurement managers. The RGBW light engine offers high color rendering index and uniform beam dispersion, enabling precise color mixing and effects control via DMX512 protocols favored in advanced led light factory productions. User convenience is enhanced by the ease of installation combined with robust weatherproof capabilities, ensuring reliable outdoor performance under varying climatic conditions. These features make the Y22 a valuable component in achieving sophisticated lighting designs with minimized operational overhead.
| Model No. | F3040 | X20 | Y22 | Y30 |
| Input Voltage | DC24V | |||
| Power Consumption | ≤2W(Customizable within 2W) | 1W | 0.72W | ≤1W(Customizable within 1W) |
| LEDs | SMD3535+SMD2835 | SMD2727/SMD3535 | SMD5050/SMD2727 | SMD5050/SMD2727 |
| Color | RGBW | RGB | RGBW | RGBW |
| Control Mode | DMX512 | DMX512/SPI | DMX512/SPI | DMX512 |
| Maximum serial number | 12PCS/m | 12PCS/m | 20PCS/m | 12PCS/m |
| Beam Angle(°) | 100 | 110 | 110 | 100 |
| CRI | ＞80 | |||
| IP Rating | IP66 | |||
| Working Temperature | −25°C ~ +50°C | |||
| Life Span | ≥50000h | |||
| Body Material | PC | |||
| Dimension | 40.0mm(L)x33.0mm(W)x 15mm (H） | 27mm(L)x19.9mm(W)x 11.5mm (H) | 25.3mm(L)x26.2mm(W)x 15.9mm (H) | 36.2mm(L)x32.5mm(W)x 13.6mm (H) |
Use Scenarios
Architectural Facade and Urban Landscape Lighting
In urban architectural environments, the Y22 LED Point Light serves as a core element for façade illumination, integrated by led screen manufacturers into large-scale media walls or architectural accent lighting. Its IP66 waterproof rating and wide operating temperature range make it suitable for permanent outdoor installations exposed to environmental stressors. The device’s DMX512 control compatibility allows precise synchronizing with external lighting management systems, facilitating dynamic color changes and programmable sequences that enhance building aesthetics and nighttime visibility. This solution meets regulatory compliance for electrical safety and environmental resilience, ensuring consistency in public display projects requiring scalable led screen solutions.
Event and Stage Lighting Integration
Within event venues and entertainment stages, the Y22 LED Point Light functions as an effective component for ambient and accent lighting, deployed by led light suppliers to create versatile light effects without compromising energy efficiency. Its compact form factor and snap-fit installation offer flexibility for temporary or semi-permanent lighting rigs. The RGBW configuration supports rich, programmable color transitions managed via DMX512 protocols, allowing event planners and lighting engineers to tailor visual experiences for performances and displays. Additionally, its rugged construction withstands frequent handling and outdoor exposure, fitting seamlessly into staged productions demanding rapid deployment and reliable performance in line with professional led light solutions.
What materials are used in the Y22 LED Point Light housing?
Our Y22 LED Point Light features a durable PC (polycarbonate) housing that offers excellent weather resistance, flame retardance, and UV protection. This ensures long-term reliability in diverse outdoor environments. We take pride in our products as a trusted led light manufacturer with robust material quality.
Can I customize the Y22 LED Point Light for specific installation configurations?
Yes, the Y22 supports multiple installation methods thanks to its connectorless snap-fit design. This flexibility facilitates efficient setup for architectural facades or signage projects. As an experienced led light supplier, we assist clients with tailored lighting solutions for various professional applications.
How does the Y22 ensure reliable performance in outdoor environments?
We design the Y22 with an IP66 rating for waterproofing and incorporate outdoor lightning and ESD protection. Operating within -25°C to +50°C, it withstands demanding weather conditions while maintaining consistent brightness and long lifespan.
Is the Y22 suitable for large-scale DMX512 lighting control systems?
Absolutely. The Y22 is engineered for precise, programmable control via DMX512, supporting up to 12 units per meter, and is compatible with SPI in related variants. We provide professional support to integrate the Y22 into comprehensive led light solutions for complex lighting projects.
