Factor
|

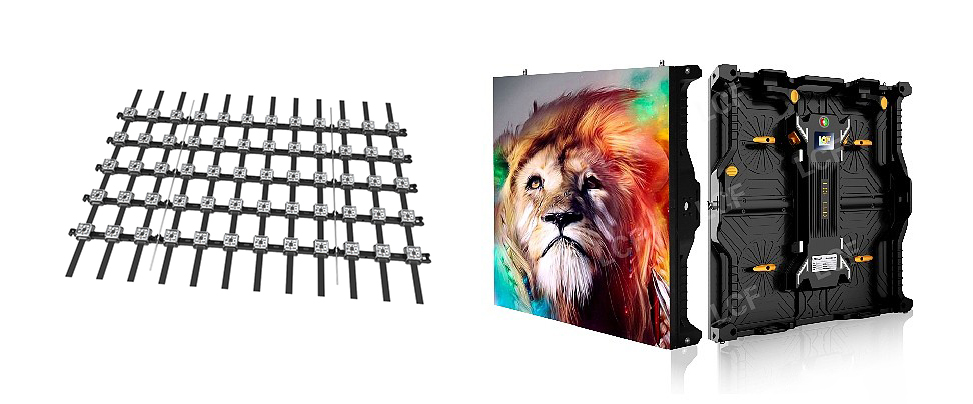

Transparent LED Mesh Screen
|
Traditional LED Display (Cabinet Type)
|
Why It Matters in 2026
|
|---|---|---|---|
|
1. Weight & Installation
|
1.2–10 kg/m²
Can be rolled, shipped flat, and mounted directly onto glass or frames with minimal substructure. |
35–65 kg/m²
Requires heavy steel support frames, significant engineering, and longer installation times. |
Faster retrofits, lower structural cost. Mesh screens enable projects on existing buildings without major reinforcement, cutting timelines by 50-70%.
|
|
2. Transparency & Daylight
|
60–93% physical transparency.
Nearly invisible by day; preserves natural light and views. Light loss <7%. |
0% transparency.
Blocks 40-70% of natural light, creating a "black box" effect that can impact occupant well-being and rental value. |
Sustainable design & occupant comfort. Preserving daylight is now a key LEED/WELL certification criterion and a premium rental feature.
|
|
3. Energy Use & Heat
|
280–360 W/m² (typical).
Open structure enables passive cooling; surface temps 20-30°C lower. |
700–950 W/m² (typical).
Requires active cooling (fans/AC), adding noise, power draw, and maintenance. |
Lower operational cost & carbon footprint. Mesh screens can save 60-70% on energy costs over 5 years, a major financial and ESG advantage.
|
|
4. Maintenance & Reliability
|
Modular, single-pixel replacement with magnetic tools. One technician can fix a point in <5 mins without shutting down the display.
|
Module-level replacement. Requires scaffolding, power shutdown, and swapping entire 500x500mm panels.
|
95% lower annual maintenance cost. SPI breakpoint resume technology ensures one faulty pixel doesn't cascade, maximizing uptime.
|
|
5. Visual Performance
|
High contrast using the real sky/building as a black background. Reduces glare and moiré patterns. Supports 16K refresh rates.
|
Lower inherent contrast as the screen itself is the background. Can appear flat in bright daylight.
|
Superior image "pop" in outdoor settings. The natural black background makes colors more vivid and content more engaging from a distance.
|
|
6. Durability (Harsh Environments)
|
IP67/IP68 standard. Fully potted LEDs withstand salt spray, monsoons, and desert heat (tested from -40°C to +85°C).
|
Typically IP65. Sealed cabinets can trap moisture and heat, leading to condensation and premature failure.
|
Proven 5+ year outdoor lifespan in coastal and extreme climates. Lighter weight also reduces wind load stress.
|
