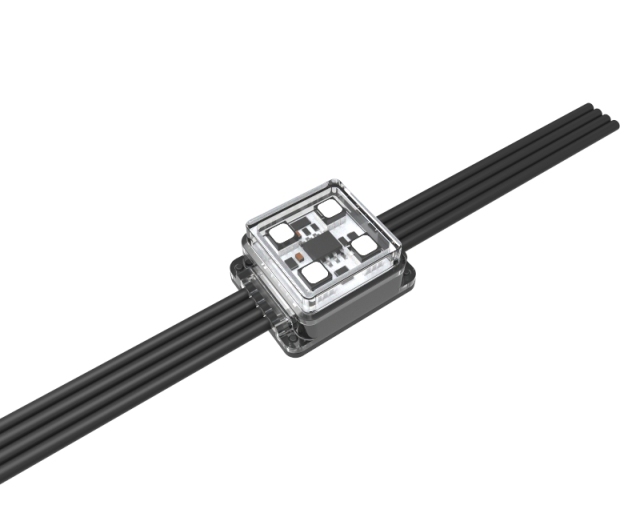

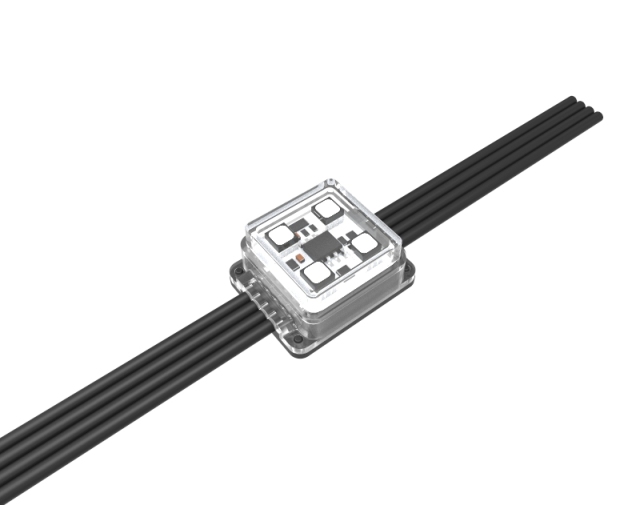

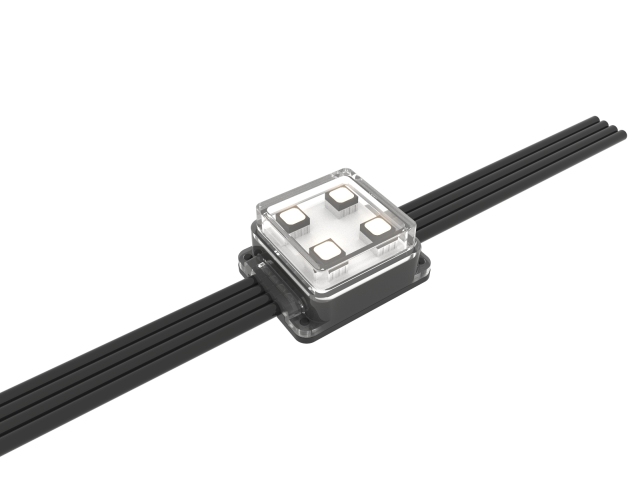

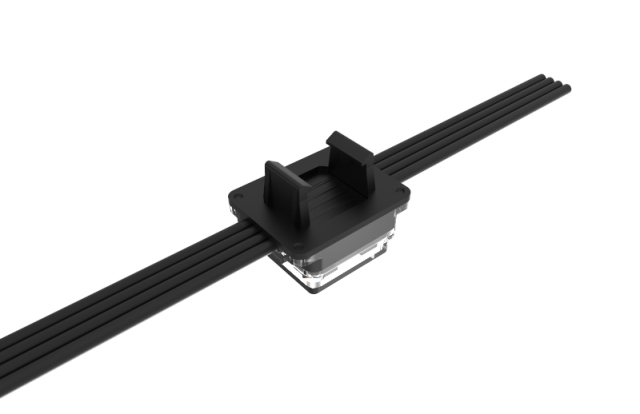

The X20 LED Point Light delivers compact, precise outdoor illumination with IP66-rated durability. Engineered by a reliable led light manufacturer, it supports DMX512 control and offers versatile rgbw color options, suited for various professional lighting projects.
Performance parameter:| Input Voltage | DC24-48V |
| Material | PC |
| Control Method | DMX512/ SPI |
Targeted Deployment for Architectural and Display Lighting
The X20 LED Point Light is engineered for businesses requiring advanced outdoor lighting solutions in architectural facades, signage, and display installations. Designed explicitly for integration by led light manufacturers and led light suppliers, it supports both RGB and RGBW color configurations with DMX512 and SPI protocol compatibility, enabling precise control and synchronization across installations. Its compact size and versatile voltage options provide flexible deployment in tight or difficult-to-access spaces, addressing the practical needs of professional lighting engineers and procurement teams seeking reliable and customizable led light solutions for exterior lighting projects.
Advanced Specifications Supporting Reliable Operation
Constructed with robust PC housing, the X20 LED Point Light is rated IP66 for outstanding weather resistance, suitable for rigorous outdoor environments. It operates effectively in temperatures ranging from -25°C to +50°C and delivers a lifespan exceeding 50,000 hours with minimal maintenance. Equipped with high-quality LEDs, including SMD3535 and SMD2727 variants, it achieves a strong luminance output with low power consumption not exceeding 2W, aligning with energy efficiency standards. The precise beam angles, CRI above 80, and multiple model sizes ensure that the product meets the technical specifications required by led light factories and custom led screen manufacturers for high-performance lighting installations.
Sector-specific Applications Enhancing Lighting Efficiency
The X20 LED Point Light offers significant value across various sectors, such as outdoor architectural facade projects, commercial signage, and LED transparent display systems. Its controllability via DMX512 and SPI protocols allows integration within complex lighting networks favored by led screen manufacturers and led screen solutions providers. Utilizing its outdoor durability and configurable power settings, it supports dynamic lighting effects for events, retail, and museum displays while complying with stringent operational and environmental requirements. This flexibility makes it a preferred component in the portfolios of outdoor led screen suppliers and led light manufacturers serving multinational urban landscape and commercial lighting demands.
Product Advantages
Structural and System Design Superiority
The X20 LED Point Light features a compact form factor with high-grade PC housing designed for maximum weatherproofing (IP66), which optimizes longevity and system reliability. Its modular design allows seamless integration into custom led screen assemblies and larger architectural lighting frameworks. Compatibility with DC24V input (and variants supporting DC24-48V) simplifies power system design for led light manufacturers. The unit supports both DMX512 and SPI control protocols, enabling versatile deployment with various led screen manufacturers and outdoor led screen suppliers, while maintaining reduced installation complexity and enhanced modular scalability for urban lighting projects.
Performance and Operational Usability Benefits
This product excels with exceptional operational parameters, including a long lifespan exceeding 50,000 hours and CRI values over 80, ensuring high color fidelity and consistent performance. Its low power consumption and customizable LED configurations afford cost-effective energy management critical for large-scale lighting contractors and led light factories. The X20 LED Point Light offers simplified system integration, facilitating smooth programming and remote control in sophisticated led light solutions setups. End-users gain reliability in harsh environments and flexibility in lighting design applications, making it a practical choice for professional lighting engineers focusing on durability and efficiency.
| Model No. | F3040 | X20 | Y22 | Y30 |
| Input Voltage | DC24V | |||
| Power Consumption | ≤2W(Customizable within 2W) | 1W | 0.72W | ≤1W(Customizable within 1W) |
| LEDs | SMD3535+SMD2835 | SMD2727/SMD3535 | SMD5050/SMD2727 | SMD5050/SMD2727 |
| Color | RGBW | RGB | RGBW | RGBW |
| Control Mode | DMX512 | DMX512/SPI | DMX512/SPI | DMX512 |
| Maximum serial number | 12PCS/m | 12PCS/m | 20PCS/m | 12PCS/m |
| Beam Angle(°) | 100 | 110 | 110 | 100 |
| CRI | ＞80 | |||
| IP Rating | IP66 | |||
| Working Temperature | −25°C ~ +50°C | |||
| Life Span | ≥50000h | |||
| Body Material | PC | |||
| Dimension | 40.0mm(L)x33.0mm(W)x 15mm (H） | 27mm(L)x19.9mm(W)x 11.5mm (H) | 25.3mm(L)x26.2mm(W)x 15.9mm (H) | 36.2mm(L)x32.5mm(W)x 13.6mm (H) |
Use Scenarios
Architectural Facade Lighting Deployment
Within commercial and municipal building environments, the X20 LED Point Light is deployed for detailed facade illumination and accent lighting, providing robust solutions for architects and lighting designers. Its IP66 rating and wide operating temperature range allow it to function reliably outdoors, sustaining UV and moisture exposure. Precision color control via DMX512 enables dynamic lighting effects, integrating seamlessly with custom led screen manufacturers’ urban landscape projects. Its compact dimensions facilitate installation on limited-space architectural surfaces while aligning with energy efficiency guidelines, supporting sustainable building certifications and enhancing architectural aesthetics in high-visibility urban applications.
Outdoor Event and Venue Illumination Integration
In open-air event venues or entertainment spaces, the X20 LED Point Light serves critical roles in creating ambient lighting and color chases that enhance visual effects and audience engagement. Its controllable RGBW configurations, paired with SPI control compatibility, allow lighting technicians to execute sophisticated sequences with synchronization across multiple units, ideal for complex led screen solutions. The product’s durable construction supports continuous outdoor operation under fluctuating weather conditions, making it a dependable component for outdoor led screen manufacturers deploying temporary or permanent lighting installations. This seamless integration into existing lighting infrastructures streamlines operational workflow and ensures high-quality, scalable illumination.
What types of LED chips are used in the X20 LED Point Light?
Our X20 LED Point Light utilizes high-quality LED chips including SMD3535, SMD2835, SMD2727, and SMD5050 variants. This variety ensures strong brightness, accurate color rendering, and supports both RGB and RGBW color configurations, meeting diverse led light solutions needs for architectural and display lighting.
Can the X20 LED Point Light be customized for different power consumption and control systems?
Yes, we offer customization of power consumption within 1W to ≤2W depending on the variant. The X20 supports DMX512 and SPI control protocols for precise color and timing management, allowing flexible integration in your projects. As a trusted led light manufacturer, we tailor solutions to your specifications.
Is the X20 LED Point Light suitable for harsh outdoor environments?
Absolutely. The X20 features IP66 weatherproof housing and operates reliably between −25°C to +50°C. Its durable PC casing and ≥50,000 hours lifespan ensure it withstands demanding conditions, making it ideal for outdoor signage and architectural lighting applications offered by professional led light suppliers.
What support do you provide for installation and maintenance of the X20 LED Point Light?
We offer comprehensive technical support for installation, prototyping, and maintenance to ensure optimal performance of the X20 LED Point Light. Our team assists with integrating the product into your existing LED screen or lighting system, ensuring compliance with industry standards and helping reduce maintenance costs.
