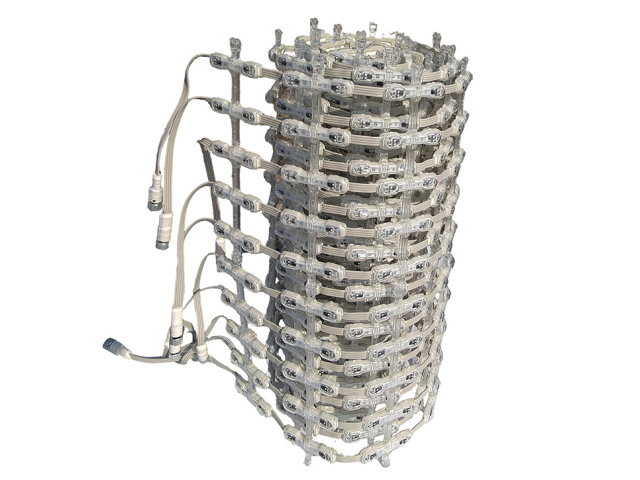

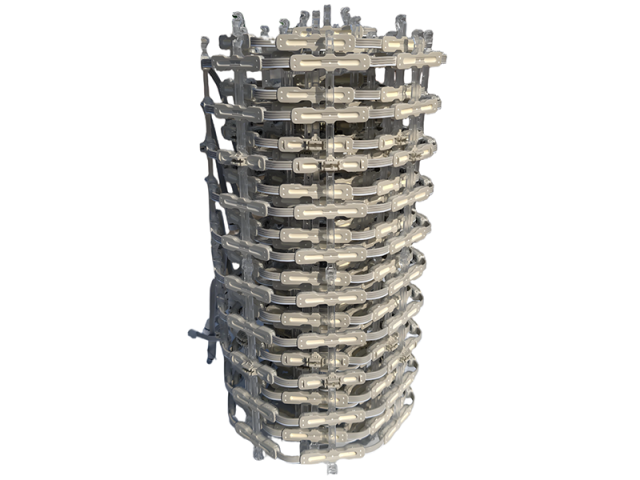

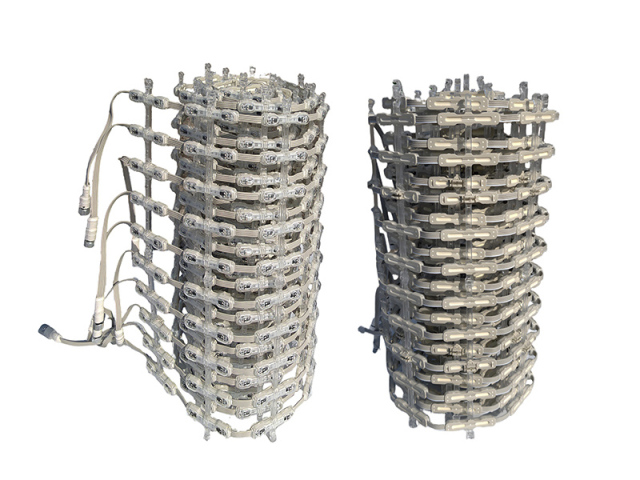

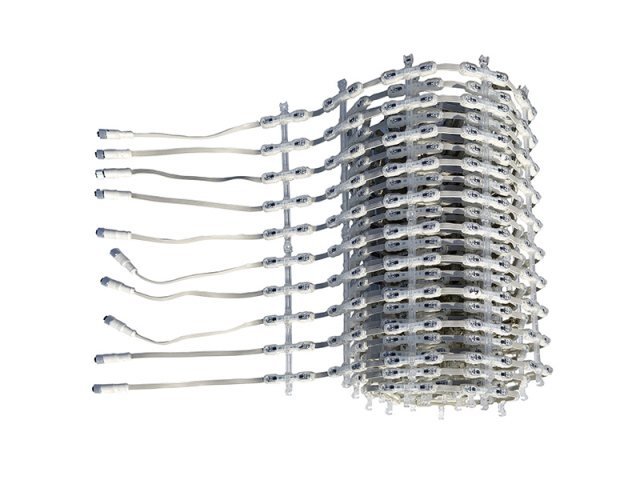

The P50 LED Mesh Screen is a robust outdoor display solution from trusted led screen manufacturers, ideal for architectural and event use. It features high transmittance and IP66 protection for seamless integration and durability.
Performance parameter:| Color | RGB |
| LED | SMD2727 Customized |
| IP Rating | IP66 |
| Pixel pitch | P25 | P50 | |
| Input Voltage | DC24V | DC15V | |
| Power Consumption | 0.5W±10% | 0.5W±10% | 0.76W±10% |
| Down-Lead Specification | 2*0.5mm²+2*0.3mm² | ||
| Outgoing lines way | One in and one out; with male and female head | ||
| Max. PCS/ M | 40pcs | 20pcs | |
| Maximum serial number | The power end is connected with 64PCS in series; One port of the signal end is connected with 256PCS in series | ||
| Control Mode | Breakpoint resume | ||
| Segment/Channel | 1/3 channel | ||
| Control chip | GS8316 | SM18703APB | |
| Addressing method | GS8316/3 channel | SM18703APB/3 channel | |
| LED Brand | Ruisheng | ||
| LEDs | 2PCS 2727 | 4PCS 2727 | |
| Electronic scheme | Linear constant current | ||
| CCT | RGB (R: 625nm, G: 530nm, B: 470 nm, deviation ≤ ± 5 nm) | ||
| Beam Angle(°)FWHM | 120°(±10%) | ||
| Typical Lumen（lm） | 10lm | ||
| K value | N/A | ||
| SDCM | <7 | ||
| CRI | >80 | ||
| Shell material | PC | ||
| Cover material | PC (transparent) | ||
| Color | Transparent color | ||
| Net Weight | N/A | ||
| Oper.Temp. | −25°C ~ +50°C | ||
| Storage Temp. | −40°C ~ +70°C | ||
| IP Rating | IP66 | ||
| IK Rating | N/A | ||
| Certification | CE ROSH FCC | ||
Targeted for Challenging Outdoor Visual Installations
The P50 LED Mesh Screen is engineered by leading outdoor led screen manufacturers to serve clients requiring high-reliability digital displays in demanding environments. Its design suits architectural façades, large event stages, and signage providers seeking a balance between transparency and visual impact. This custom led screen manufacturer product is optimized for contractors, system integrators, and planners who value modularity and easy installation, positioning it as a strategic solution in comprehensive led light solutions for outdoor applications.
Precise Technical Composition and Control Features
Equipped with P50 pixel pitch and RGB SMD2727 LED modules, this screen delivers vivid colors with a 120° viewing angle and superior brightness control thresholds. It incorporates power-efficient LED components consuming approximately 0.5W to 0.76W per pixel, compatible with DC24V and DC15V systems. The mesh layout reduces wind load and improves airflow, supported by IP66-rated transparent PC enclosures. Control chips GS8316 and SM18703APB enable advanced features such as breakpoint resume and daisy-chain signal wiring, facilitating scalable setups. As a modular led screen manufacturer product, it ensures straightforward maintenance and compliance with CE, ROHS, and FCC standards.
Versatile Industry Deployment and Practical Benefits
This outdoor led screen supplier product addresses the needs of urban planners, event organizers, and commercial advertisers aiming for impactful digital signage exposed to weather extremes. Its transparent mesh structure makes it ideal for landmark building illumination, stadium backdrops, and outdoor exhibitions, maintaining architectural transparency without sacrificing brightness or durability. The product's adaptability supports rapid deployment for temporary event use or long-term, permanent installations, delivering consistent performance and operational ROI across diverse sectors leveraging advanced led screen solutions.
Product Advantages

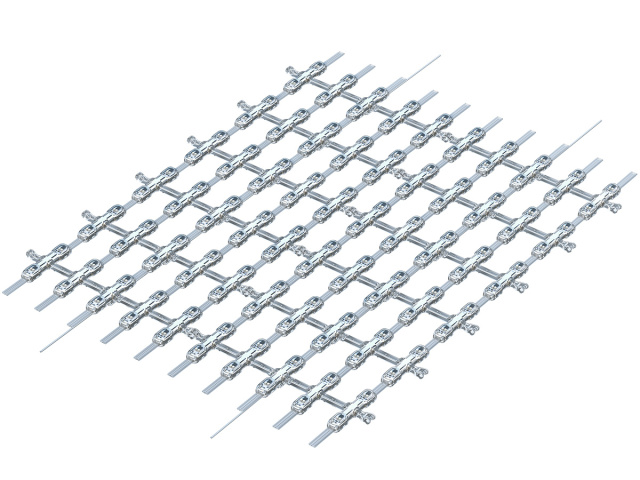

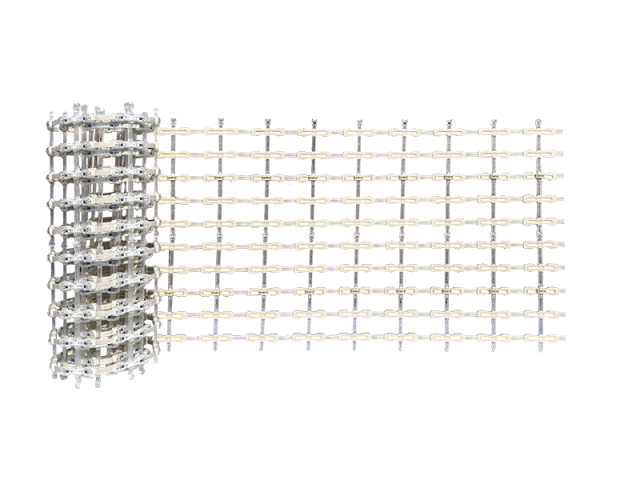

Advanced Modular Design for Seamless Integration
The P50 LED Mesh Screen boasts a lightweight, modular grid system crafted by a reputable led light manufacturer to streamline assembly and scalability during installations. Its mesh pattern reduces wind resistance and enhances air circulation, critical for outdoor thermal management and structural integrity. Integration of daisy-chain one-in, one-out signal wiring and power continuity promotes installation efficiency and system expansion. The transparent PC shell and cover minimize visual obstruction, allowing the screen to blend discreetly with architectural façades or stage structures, reinforcing design flexibility and operational reliability.
Superior Operational Performance and Maintenance Efficiency
From a user perspective, the product ensures high color fidelity and uniform brightness with its Ruisheng LED modules, managed by sophisticated GS8316 and SM18703APB chipset technology. The screen’s breakpoint resume feature reduces downtime risks, while its IP66 enclosure guarantees resistance against dust and water ingress, substantially lowering maintenance frequency. As a leading product from led light factory resources, it offers energy-efficient operation and easy module replacement, supporting client requirements for long-term outdoor digital display solutions with consistent visual quality and reduced total cost of ownership.
Use Scenarios
Architectural Façade Integration for Urban Lighting
In urban landscape projects, the P50 LED Mesh Screen is utilized to enhance building exteriors with dynamic lighting effects while preserving transparency aesthetics. This application benefits from the screen’s lightweight, wind-resistant mesh design and IP66 protection, allowing secure façade mounting compliant with structural and environmental standards. As sourced from experienced led screen manufacturers, it integrates smoothly with existing architectural lighting control systems, making it a preferred solution for city planners and construction engineers seeking sustainable, visually compelling urban displays.
Outdoor Event and Festival Stage Displays
For temporary outdoor events such as concerts and festivals, this outdoor led screen supplier product offers rapid deployment and removal capabilities, essential for event logistics and schedule adherence. Its modular design supports flexible configurations and daisy-chain wiring, reducing setup time and facilitating seamless video content delivery under variable weather conditions. The high brightness and wide viewing angle ensure audience visibility, while robust IP66-rated enclosures safeguard functionality. Event production teams leverage this custom led screen manufacturer product to deliver immersive visual experiences aligned with professional staging standards.
What are the main features of the P50 LED Mesh Screen for outdoor use?
Our P50 LED Mesh Screen features a robust IP66-rated enclosure for weather resistance and uses high-quality Ruisheng LEDs with a P50 pixel pitch. Its transparent PC shell reduces visual intrusion, while the mesh design offers high transmittance and reduced wind load—ideal for outdoor architectural façades and event backdrops.
Can you customize the P50 LED Mesh Screen to fit different project requirements?
Yes, we provide modular custom LED screen solutions that support DC24V and DC15V power options. Our displays allow flexible grid configurations and include features like breakpoint resume and daisy-chain wiring, ensuring seamless adaptation to diverse outdoor applications and installation environments.
How do you ensure easy installation of the LED Mesh Screen on building façades?
We designed the P50 Mesh Screen with a lightweight, modular grid structure and one-in, one-out daisy-chain signal wiring to simplify installation on building exteriors. Comprehensive technical guidance and support accompany our products to enable efficient, secure mounting and consistent display performance.
What maintenance practices are recommended for the P50 LED Mesh Screen?
Our LED Mesh Screen is built for durability with an IP66-rated enclosure and efficient power management, minimizing maintenance needs. We recommend routine cleaning and visual inspections to sustain optimal performance. Partnering with a reliable outdoor LED screen manufacturer like us ensures long-term operational stability and support.
